• FieldCast Power Panel One

About: FieldCast Power Panel One

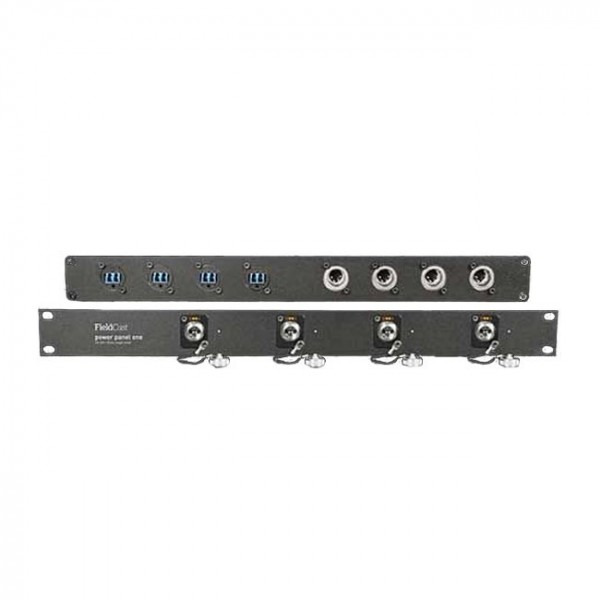

FieldCast Power Panel One is a 19" 1RU panel box, on the frontside equipped with four FieldCast 2Core SM Hybrid Chassis Connectors to connect to up to four FieldCast Hybrid Main Cables.

The back is equipped with four LC Duplex connectors to patch to up to four LC SFPs in the ATEM Studio Converter. In addition FieldCast Power Panel One is provided with four XLR connectors, ideal for connecting to  FieldCast Power Box for 24V power.

FieldCast Power Panel One is developed to properly and sturdily patch FieldCast Hybrid Cables to ATEM Studio Converter, ATEM Talkback Converter 4K or any other device using LC single mode connectivity while getting current from FieldCast Power Box to power cameras or any other LC single mode equipment on long distance. FieldCast Power Panel One is a panel box, 1 rack unit in height, which can be implemented in a 19” rack nearby your Studio Converter and FieldCast Power Box.

Four FieldCast 2Core SM Hybrid Chassis Connectors are mounted on the frontside of the FieldCast Power Panel One; so you can connect to up to four FieldCast Hybrid Main Cables coming out of cameras or other equipment . Built-in on the backside of the FieldCast Power Panel One are four LC Duplex and four XLR connections; with standard LC Duplex patch cables you can connect to the SFPs in ATEM Studio/Talkback 4K Converter; with standard XLR cables you can patch to FieldCast Power Box and feed each FieldCast Hybrid Main Cable with 24V power. Patch cables are not by default included in FieldCast Power Panel One.

Specifications
1.8mm. steel panel with rounded edges and black paint finish
standard 1RU panel size, 7 cm depth
four D-size (24 mm.) cutouts
horizontal punch spacing 105 mm
four FieldCast 2Core Hybrid Chassis Connectors SM (single mode)
four LC Duplex connections on the back
four XLR connections on the back for power
weight 1.21 kg
product code: br008

Model: FC-br008

Write a review

Note: HTML is not translated!
   Bad           Good

FieldCast Power Panel One

  • Brands FieldCast
  • Product Code:FC-br008
  • Availability:In Stock
  • $628.00
