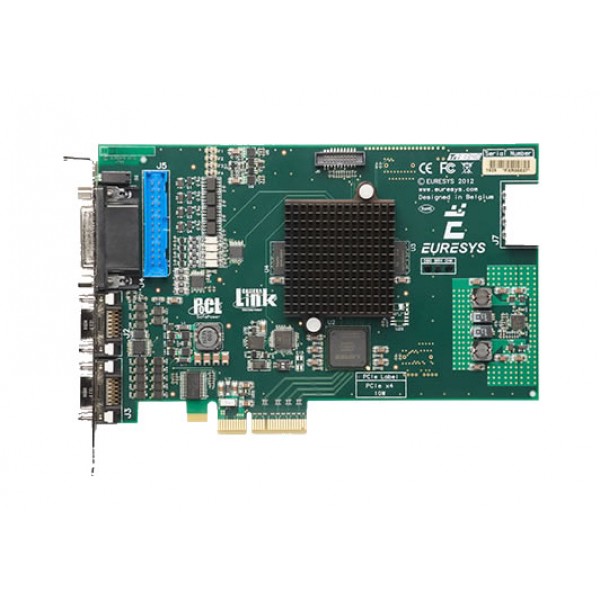

About: Euresys Grablink Full XR Full Configuration Camera Link Frame Grabber

Euresys Grablink Full XR Full Configuration Camera Link Frame Grabber 1626 is compatible with a wide range of sensors and motion encoders and use longer, up to 20 meters long, Camera Link cables. Grablink Full XR High-speed differential inputs Quadrature motion encoder support up to 5 MHz. Isolated current-sense inputs: 5V, 12V, 24V signaling voltages accepted, up to 50 kHz, individual galvanic isolation up to 500VAC RMS, Isolated contact outputs.

Features:

For one Camera Link 80-bit, 72-bit, Full, Medium or Base configuration camera
Directly compatible with hundreds of Camera Link cameras available on the market
Supports PoCL, Power over Camera Link
ECCO+: Double Camera Link maximum cable length
PoCL SafePower compliant
PCIe x4 bus: 850 MB/s sustained delivery bandwidth
Feature-rich set of 10 digital IO lines
Memento Event Logging Tool

Model: 1626
