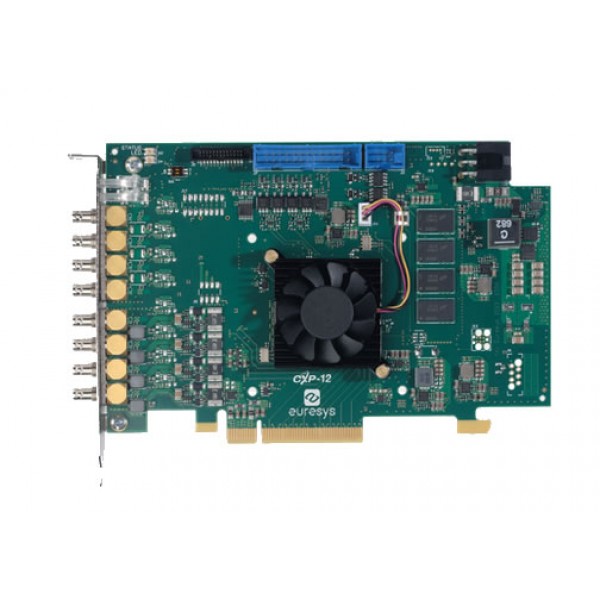

About: Euresys Coaxlink Quad CXP-12 DF CoaXPress Frame Grabber Data Forwarding

Euresys Coaxlink Quad CXP-12 DF 3624 Four-connection CoaXPress CXP-12 frame grabber with Data Forwarding offering Coaxlink frame grabber controls the camera scanning rate based on the signals received from a motion encoder. When the parts move faster, the acquisition line rate of the camera increases. When the parts move slower, the acquisition line rate of the camera decreases.

Features:

On-board memory 4GB
Four CoaXPress CXP-12 connections and four Data Forwarding outputs: 5,000 MB/s camera bandwidth
PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
Feature-rich set of 10 digital I/O lines
Extensive camera control functions
Memento Event Logging Tool
Maximum CXP stream packet size 16,384 bytes

Applications:

Machine Vision for the Electronic Manufacturing Industry
High speed image acquisition for AOI, 3D SPI, 3D lead/ball inspection machines.
Very high resolution line-scan image acquisition for Flat Panel Display inspection and solar cell inspection

Machine Vision for the General Manufacturing Industries
High frame rate image acquisition for inspection machines
Line-scan image acquisition for surface inspection machines
Line-scan image acquisition for textile inspection
