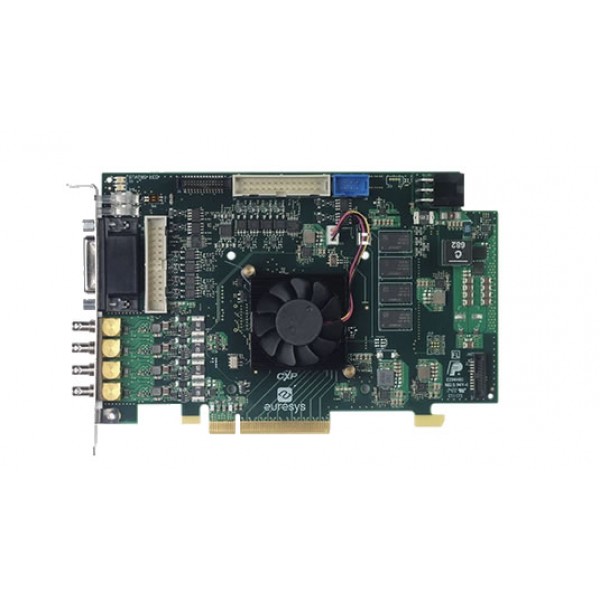

About: Euresys Coaxlink Quad CXP-12 3D-LLE Frame Grabber 3633

Euresys Coaxlink Quad CXP-12 3D-LLE Frame Grabber 3633 offering Four-connection CoaXPress CXP-12 frame grabber with on-board laser line extraction for 3D profiling. The Coaxlink's on-board FPGA measures the position of the laser line during the image acquisition without loading the host CPU

Features:

Laser line extraction with zero host CPU usage
Single and Dual Laser Line Extraction into a depth map
Real-time generation of 16-bit 3D height maps
Choice of algorithms: Maximum, Peak, Center of Gravity (COG)
Precision: up to 1/256 pixel (with Peak and COG algorithms)
Performance: 76,000 profiles/s from 1024 x 128 images. 152,000 profiles/s from 1024 x 64 images
Four CoaXPress CXP-12 connections: 5,000 MB/s camera bandwidth
Memento Event Logging Tool
