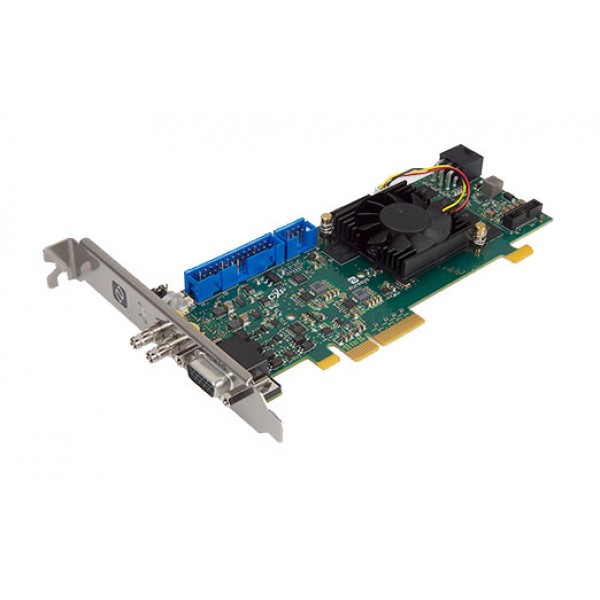

About: Euresys Coaxlink DUO CXP-12 Low Profile Frame Grabber

Euresys Coaxlink DUO CXP-12 Low Profile 3622 Frame Grabber designed for transmission and acquisition of high-definition video over long coaxial cables for traffic surveillance, monitoring and control. Direct GPU transfer eliminates unnecessary system memory copies, lowers CPU overhead, and reduces latency, resulting in significant performance improvements in data transfer times for applications. Direct capture of image data to GPU memory is available using AMD's DirectGMA. Compatible with AMD FirePro W5x00 and above and all AMD FirePro S series products.

Applications

Machine Vision for the Electronic Manufacturing Industry
High speed image acquisition for AOI, 3D SPI, 3D lead/ball inspection machines.
Very high resolution line-scan image acquisition for Flat Panel Display inspection and solar cell inspection
Mark inspection
Machine Vision for the General Manufacturing Industries
High frame rate image acquisition for inspection machines
Line-scan image acquisition for surface inspection machines

Specifications

Format Low profile, half length, 4-lane PCI Express card
Cooling method Air cooling, fan-cooled heatsink
Mounting For insertion in a 4-lane or higher, PCI Express card slot.
Delivered with standard- and low-profile brackets for insertion in a standard- or a low-
profile chassis.
Connectors 'A', 'B' on bracket:
Micro-BNC female connectors
CoaXPress host interface
EXTERNAL I/O 1' on bracket:
15-pin 3-row high-density female sub-D connector
I/O lines and power output
INTERNAL I/O 1' on PCB:
26-pin 2-row 0.1" pitch pin header with shrouding
I/O lines and power output
I/O EXTENSION' on PCB:
26-pin 2-row 0.05" pitch pin header with shrouding
I/O extension lines and power output
AUXILIARY POWER INPUT' on module:
6-pin PEG power socket
12 VDC power input for PoCXP camera(s) and I/O power
C2C-LINK' on module:
6-pin 2-row 0.1" header
Card to card link
LED indicators • 'A', 'B' on bracket:
Bi-color red/green LEDs
CoaXPress Host connector indicator
FPGA STATUS LAMP' on PCB:
Bi-color red/green LED
FPGA status indicator
BOARD STATUS LAMP' on PCB:
Bi-color red/green LED
Board status indicator
Line-scan image acquisition for textile inspection
Image acquisition for robots
Machine Vision for the Printing Industry
High speed line-scan image acquisition for printing inspection machines
Video Acquisition and Recording
High-frame-rate video acquisition for motion analysis and recording
Video Monitoring, Surveillance & Security

Long cable support

40 meters at CXP-12 speed (12.5 Gbps)
72 meters at CXP-6 speed (6.25 Gbps)
100 meters at CXP-3 speed (3 Gbps)
