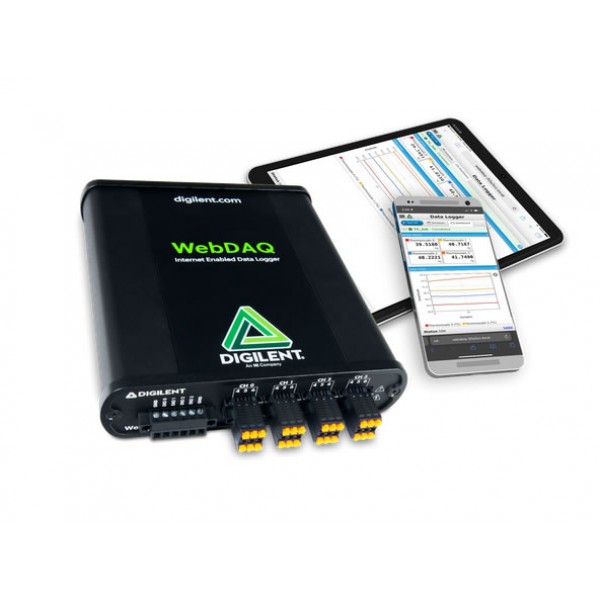

About: Digilent WebDAQ 904 Internet Enabled Universal Input Data Logger

Digilent WebDAQ 904 Internet Enabled Universal Input Data Logger 6069-410-007-1 designed for remote monitoring and control. All the intelligence is built into the WebDAQ, eliminating the need for a PC or additional software. By using the embedded WebDAQ web server, users can easily configure simple or sophisticated applications, log data, update digital outputs and/or send notifications based on alarm conditions, and view real-time data from any location and any device with a web browser.

The WebDAQ 904 performs high-accuracy measurements from up to four analog inputs. Users can measure several signals from sensors such as strain gauges, RTDs, thermocouples, and load cells. Four isolated digital bits can be used as trigger inputs or alarm outputs. Housed in a heavy-duty chassis, the WebDAQ 904 is rugged enough for industrial applications.

Features:

Four simultaneous analog inputs
Support for voltage (up to ±60 V), current, RTD, thermocouples, resistance, and bridge-based sensors
24-bit A/D converter
Up to 100 S/s/ch sample rate
Log data to internal storage or mapped network storage
Internal 3GB memory - optional SD card, and USB slots
Built-in web server allows access from any device with a web browser
Alarming and notifications with email and SMS messaging
Export data to csv, UFF, or binary for other applications
Easy, flexible task scheduling
No driver software to install
WiFi support (WiFi dongle is not included)
Ethernet port for connecting to a network or PC
Four digital I/O for triggers and alarms

Product Compliance:
HTC: 8471.80.9000
ECCN: EAR99

Model: 6069-410-007-1

Digilent WebDAQ 904 Internet Enabled Universal Input Data Logger

Brands Digilent
Product Code:6069-410-007-1
Availability:In Stock
