About: Digilent WebDAQ 316 Thermocouple Data Logger

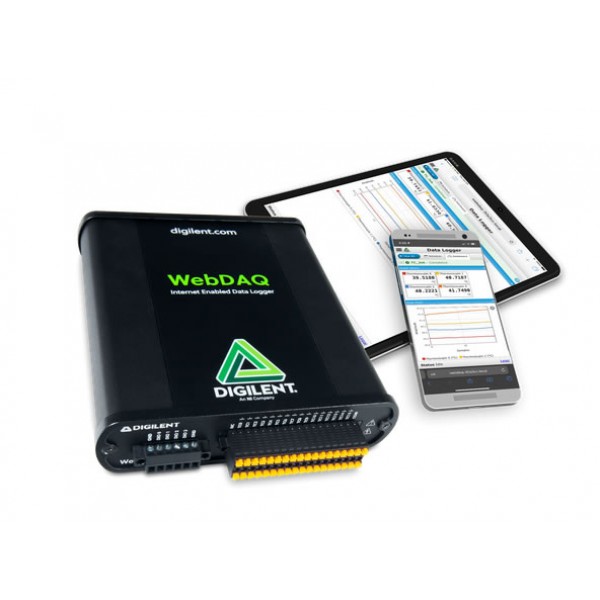

Digilent WebDAQ 316 Thermocouple Data Logger 6069-410-005-1 users can easily configure simple or sophisticated applications, log temperature data, update digital outputs and/or send notifications based on alarm conditions, and view real-time data from any location and any device with a web browser. The WebDAQ 316 provides 16 isolated thermocouple inputs, and four isolated digital bits that can be used as trigger inputs or alarm outputs. Housed in a heavy-duty chassis, the WebDAQ 316 is rugged enough for industrial applications.

Features:

16 thermocouple inputs
24-bit A/D converter
Up to 75 S/s/ch sample rate
Thermocouple types J, K, R, S, T, N, E, and B supported
Log data to internal storage or mapped network storage
Internal 3GB memory - optional SD card, and USB slots
Cold junction compensation
Built-in web server allows access from any device with a web browser
Alarming and notifications with email and SMS messaging
Export data to csv, UFF, or binary for other applications
Easy, flexible task scheduling
No driver software to install
WiFi support (WiFi dongle is not included)
Ethernet port for connecting to a network or PC
Four digital I/O for triggers and alarms

Product Compliance:
HTC: 8471.80.9000
ECCN: EAR99
