About: Digilent Nexys Video Artix-7 FPGA Trainer Board Multimedia Applications

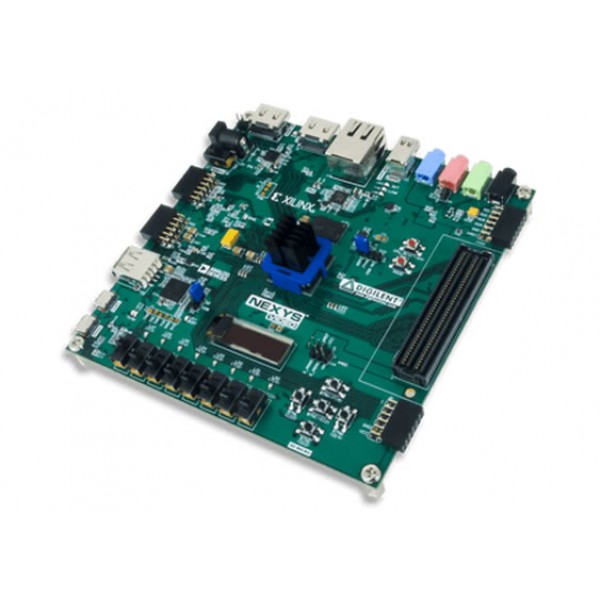

Digilent Nexys Video Artix-7 FPGA Trainer Board for Multimedia Applications 410-316 Built around the Artix-7 XC7A200T, the most powerful chip from the Xilinx® Artix-7 FPGA family, the Nexys Video has all the performance and FPGA real estate needed for high-bandwidth and low-latency A/V processing. Utilizing A/V signals is made easy with an on-board Mini DisplayPort, three high-speed digital video ports, and a 24-bit audio codec. One can conveniently scale their design with Ethernet, UART, and USB interfaces and integrate it into larger systems. There is no limit to customizability with the 160-pin FMC LPC connector and four additional Pmod ports.

The Nexys Video is supported by Xilinx's Vivado Design Suite, including the free WebPACK edition, making the Nexys Video a great option for any budget.

FPGA Features:

Xilinx Artix®-7 XC7A200T-1SBG484C
33,650 logic slices, each with four 6-input LUTs and 8 flip-flops
13 Mbits of fast block RAM (3x more than the Nexys 4 DDR)
10 clock management tiles, each with phase-locked loop (PLL)
740 DSP slices
Internal clock speeds exceeding 450MHz
On-chip analog-to-digital converter (XADC)
Up to 3.75Gbps GTP transceivers

Features:

Programmable over JTAG, Quad-SPI Flash, microSD, and USB flash drive
512MB 400MHz (800MT/s) DDR3
32MB Quad-SPI flash
microSD card slot for nonvolatile storage (card not included)
Dedicated onboard USB port for JTAG programming and data transfers
Powered from any 12V source (36W wall supply included)
HDMI sink and HDMI source
Mini DisplayPort source
24-bit Audio codec w/ four 3.5mm jacks
10/100/1000 Ethernet PHY with included unique MAC address
User EEPROM
USB-UART bridge
Digilent parallel transfer interface (DTPI) for high-speed data transfers over USB
Digilent serial peripheral interface (DSPI) for medium-speed data transfers over USB
Onboard user interfaces: 128x32 monochrome OLED display, 5 user push buttons, 8 user switches, 8 user LEDs
USB HID host for mice and keyboards
Fully-populated 160-pin FMC LPC connector
Four Pmod ports, Pmod for XADC signals

Model: 410-316

Digilent Nexys Video Artix-7 FPGA Trainer Board Multimedia Applications

Brands Digilent
Product Code:410-316
Availability:In Stock
