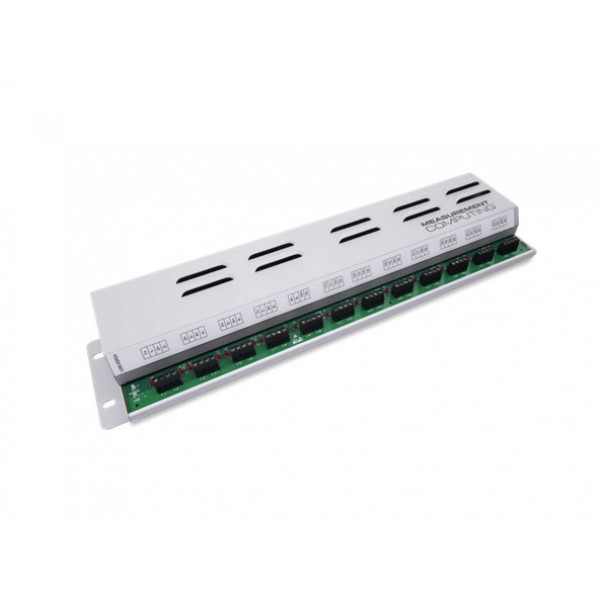

About: Digilent MCC USB-SSR 24 Solid-State Digital I/O USB Device

Digilent MCC USB-SSR 24 Solid-State Digital I/O USB Device provides mounting locations for 24 SSR modules. SSR digital I/O modules are relay control modules that provide 4000 Vrms of optical isolation. Digital input modules sense AC/DC voltages from field devices and convert them to digital TTL signals. Digital output modules use TTL signals to switch and control AC/DC loads.

Features:

Mounting rack for 24 solid state relay (SSR) modules (backplane is divided into two groups of eight modules and two groups of four modules)
Onboard switch to configure the module type (input or output) for each module group (you cannot mix input and output modules within a group)
Onboard switch to configure the control logic polarity (active high or low) for each module group
Onboard switch to configure the power-up state for output modules
Switch settings can be read back with software
Independent LEDs at each module position to indicate the on/off status of each module
Eight pairs of screw terminal banks for field wiring connections, with positive (+) and negative (-) relay contacts brought out to the terminals
USB out and power out connections support powering and controlling multiple MCC USB devices from one external power source and one USB port in a daisy-chain configuration
Rugged enclosure that can mount on a DIN rail or on a bench
The USB-SSR24 is powered by an external 9 V regulated power supply that is shipped with the device

Model: 6069-410-200

Digilent MCC USB-SSR 24 Solid-State Digital I/O USB Device

Brands Digilent
Product Code:6069-410-200
Availability:In Stock
