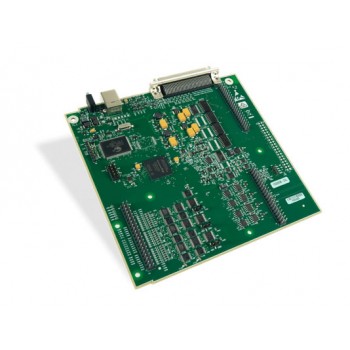

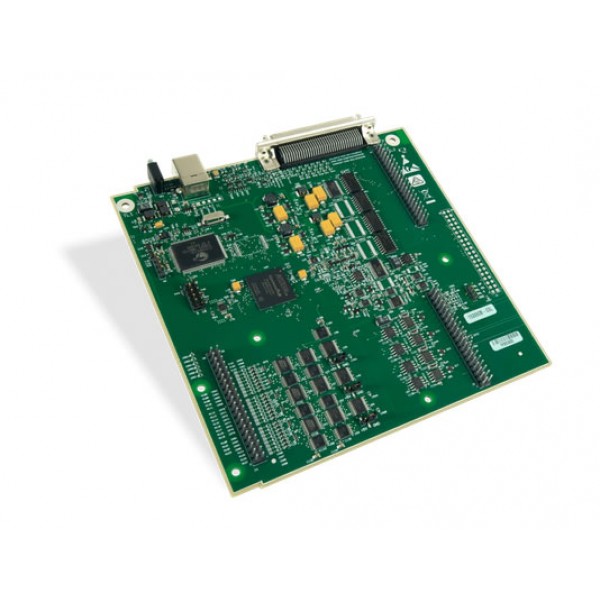

About: Digilent MCC USB-2637 High-Speed 64 SE Analog Inputs USB DAQ Device

Digilent MCC USB-2637 High-Speed 64 SE Analog Inputs USB DAQ Device 6069-410-019 feature 16 SE analog inputs, 16-bit resolution, 1 MS/s sample rate, four 16-bit analog outputs, 24 digital I/O, four 32-bit counters, and four 32-bit timers.

The optional TB-103 screw terminal board connects directly to the 40-pin headers on a USB-2600 Series board, and secures to the board with the included stand-offs, giving access to all signal I/O.

Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also included are drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.

Features:

64 SE analog inputs
16-bit resolution
1 MS/s sample rate
±10 V input range
Four 16-bit analog outputs
24 digital I/O
Four counter inputs
Four timer outputs
No external power required

Model: 6069-410-019

Digilent MCC USB-2637 High-Speed 64 SE Analog Inputs USB DAQ Device

Brands Digilent
Product Code:6069-410-019
Availability:In Stock
