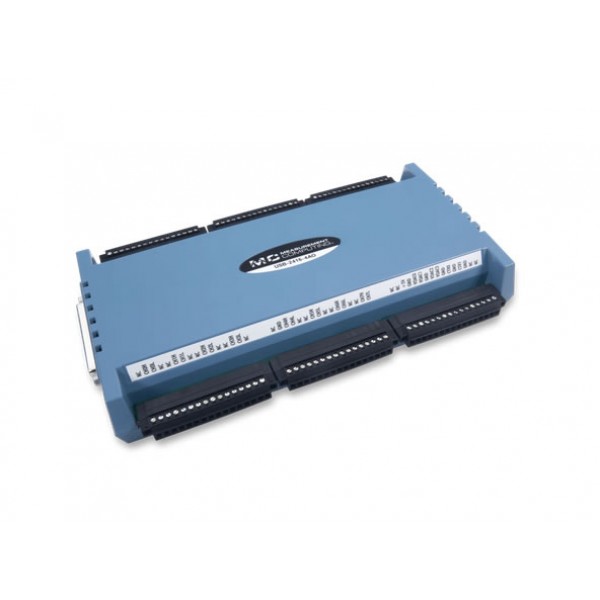

About: Digilent MCC USB-2416-4AO Expandable Thermocouple USB DAQ Device

Digilent MCC USB-2416-4AO Expandable Thermocouple USB DAQ Device ideal for higher channel count applications measuring voltage or thermocouples. Features include expandable analog and digital I/O along with counter functions.

The USB-2416-4AO features 32 SE/ 16 DIFF, 16-bit analog inputs for measuring voltage or thermocouples measurements (thermocouples are measured in DIFF mode), 1 kS/s sample rate, four analog outputs, eight digital I/O, and two counter inputs.

AI-EXP32 is an optional expansion module that provides an additional 32 SE/16 DIFF analog inputs and 16 digital I/O.

Features:

USB-2416-4AO: 32 SE/ 16 DIFF analog inputs
USB-2416-4AO and AI-EXP32: 64 SE/ 32 DIFF analog inputs
24-bit resolution
1 kS/s sample rate
Supports thermocouple types J, K, R, S, T, N, E, and B
±20 V, ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±625 mV, ±312.5 mV, ±156.25 mV, ±78.125 mV input ranges
Four 16-bit analog outputs
Eight digital I/O (24 digital I/O when using AI-EXP32)
Two counter input

Model: 6069-410-023

Digilent MCC USB-2416-4AO Expandable Thermocouple USB DAQ Device

Brands Digilent
Product Code:6069-410-023
Availability:In Stock
