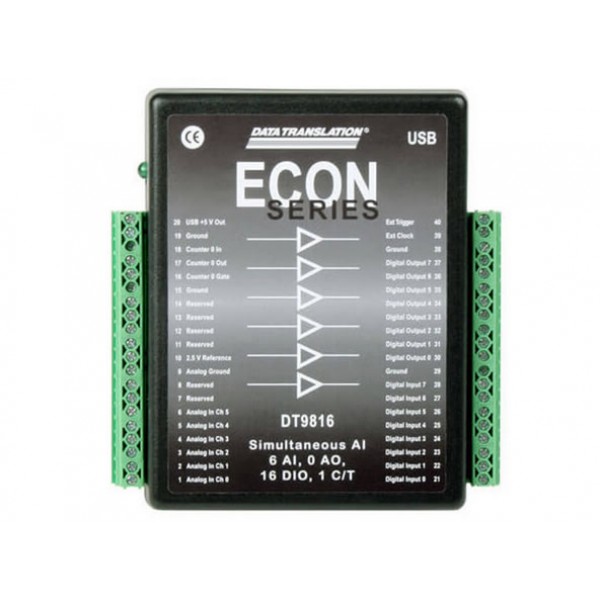

About: Digilent MCC DT9816-S Simultaneous USB DAQ Device

Digilent MCC DT9816-S Simultaneous USB DAQ Device provides separate A/D converters per channel and eliminates the phase shift between signals, allowing you to correlate simultaneous measurements of multiple inputs. The per channel sample rate, in this case, is the maximum rate of the sample clock (750 kS/s for the DT9816-S). The aggregate total throughput is the number of channels times the per channel throughput.

Software support includes QuickDAQ, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, and Linux®.

Features:

Ultimate flexibility with 6 analog inputs, 8 digital I/O, and one 32-bit counter timer
16-bit resolution
Independent subsystem operation at sample rates up to 750 kS/s per channel
Simultaneous analog inputs
Signal range of ±10 V on both the analog input and analog output
Generate sine, rectangle, triangle, or DC waveforms with the analog outputs
Three versions of digital I/O modules: isolated, nonisolated, and high current drive
Perform event counting, frequency measurement, edge-to-edge measurement, and rate generation
Shielded, rugged enclosure for noise immunity, with built-in screw terminals
Easy signal connections on the DT9812-10V-OEM with two 20-pin connectors for all I/O signals
All modules run off USB power supply, no external power supply needed
Includes free QuickDAQ software to get up and running quickly (does not support DIO)
