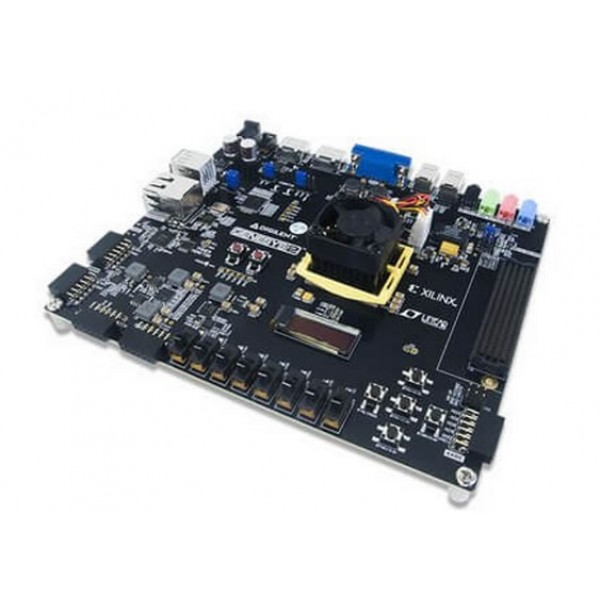

About: Digilent Genesys 2 Kintex-7 FPGA Development Board 410-300

Digilent Genesys 2 Kintex-7 FPGA Development Board 410-300 is a powerhouse for data and video processing applications, but offers a variety of peripherals making it a great solution for a wide array of projects. Everything needed for robust multimedia applications is already available on the board: DisplayPort connectors, HDMI sink and source, 16-bit VGA, 128x32 pixel OLED screen, and an audio codec with four 3.5mm jacks. One can quickly get started with A/V, image processing, or other multimedia applications without needing additional hardware.

Working on other applications, or looking for more customizability? The Genesys 2 also offers five Pmod ports and a fully populated FMC HPC connector, which provide limitless expansion options. Additionally, the 10/100/1000 Ethernet, USB 2.0, and a USB HID host for mice and keyboards make the Genesys 2 easily integrated with other systems.

Features:

fully-populated 400-pin FMC HPC connector w/ ten GTX lanes
USB-UART Bridge
128x32 pixel OLED
16-bit VGA connector
Pmod connector for XADC signals
Two four-lane DisplayPort connectors
HDMI Sink and HDMI Source
10/100/1000 Ethernet PHY
1 GB 1800 MT/s on-board DDR3
USB 2.0 Host/Device/OTG PHY
Dedicated USB port for JTAG programming and data transfers
Micro SD card connector
Audio codec w/ four 3.5mm jacks
Serial Flash
Five Pmod ports
USB HID Host for mice, keyboards and USB MSD Host for storag

On-board FPGA: Xilinx Kintex-7 FPGA:

50,950 logic slices, each with four 6-input LUTs and 8 flip-flops
16 Mbits of fast block RAM
Ten clock management tiles, each with a phase-locked loop (PLL)
840 DSP slices
Internal clock speeds exceeding 450MHz
On-chip analog-to-digital converter (XADC)
Up to 10.3125Gbps gigabit transceivers
1800Mbps DDR3 data rate with 32-bit data width
Commercial -2 speed grade

Model: 410-300
