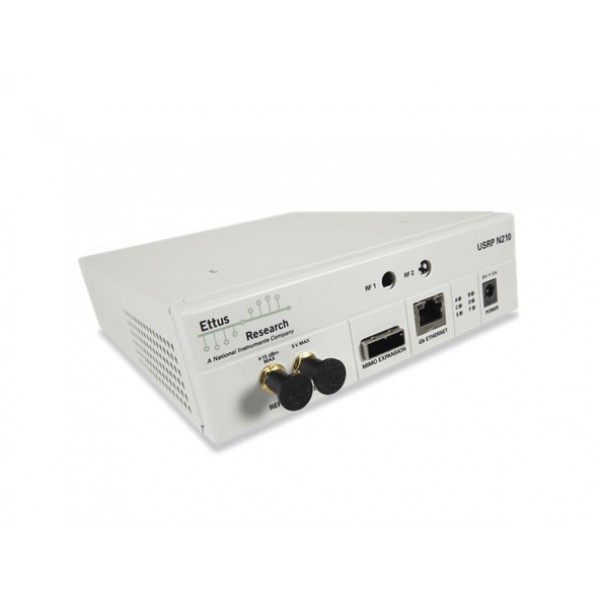

About: Digilent Ettus USRP N210 High-dynamic Range SDR/Cognitive Radio

Digilent Ettus USRP N210 High-dynamic Range SDR/Cognitive Radio 6002-410-026 designed for applications requiring high RF performance and great bandwidth. Such applications include physical layer prototyping, dynamic spectrum access and cognitive radio, spectrum monitoring, record and playback, and even networked sensor deployment. The Networked Series products offers MIMO capability with high bandwidth and dynamic range. The Gigabit Ethernet interface serves as the connection between the N210 and the host computer. This enables the user to realize 50 MS/s of real-time bandwidth in the receive and transmit directions, simultaneously (full duplex).

The USRP N210 provides high-bandwidth, high-dynamic range processing capability. The USRP N210 is intended for demanding communications applications requiring this type of rapid development. The product architecture includes a Xilinx® Spartan® 3A-DSP 3400 FPGA, 100 MS/s dual ADC, 400 MS/s dual DAC and Gigabit Ethernet connectivity to stream data to and from host processors. A modular design allows the USRP N210 to operate from DC to 6 GHz, while an expansion port allows multiple USRP N210 series devices to be synchronized and used in a MIMO configuration.

The USRP N210 can stream up to 50 MS/s to and from host applications. Users can implement custom functions in the FPGA fabric, or in the on-board 32-bit RISC softcore. The FPGA also offers the potential to process up to 100 MS/s in both the transmit and receive directions. The FPGA firmware can be reloaded through the Gigabit Ethernet interface.

Features:

Modular Architecture: DC-6 GHz
Dual 100 MS/s, 14-bit ADC
Dual 400 MS/s, 16-bit DAC
DDC/DUC with 25 mHz Resolution
Up to 50 MS/s Gigabit Ethernet Streaming
Fully-Coherent MIMO Capability
Gigabit Ethernet Interface to Host
2 Gbps Expansion Interface
Spartan 3A-DSP 3400 FPGA (N210)
1 MB High-Speed SRAM
Auxiliary Analog and Digital I/O
2.5 ppm TCXO Frequency Reference
0.01 ppm w/ GPSDO Option
Use with GNU Radio, LabVIEW™ and Simulink

Model: 6002-410-026

Digilent Ettus USRP N210 High-dynamic Range SDR/Cognitive Radio

Brands Digilent
Product Code:6002-410-026
Availability:In Stock
