About: Digilent Digital Trainer Canvas 410-428

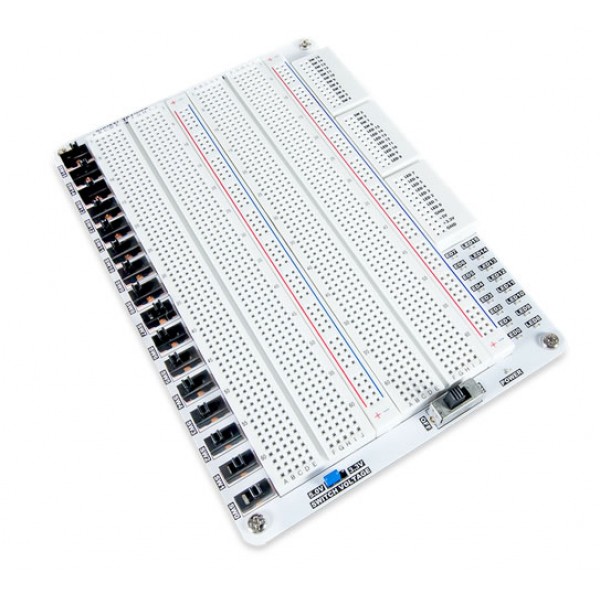

Digilent Digital Trainer Canvas 410-428 removable prototyping surface for the Analog Discovery Studio offering an array of common digital circuit components like switches and LEDs, making it well-suited for introductory coursework teaching digital electronics.Digital Trainer Canvas consists of 2 regular sized breadboards and two power rails. At the top of the board, three small breadboards contain the access pins for the power supplies, switches, and LEDs. Sixteen switches and LEDs are integrated into the canvas. The power supply access pins can be switched ON / OFF via the power supply switch and the status is indicated by the POWER indicator LED. The Digital Trainer Canvas is used with or without the Analog Discovery Studio.
Features:
Two regular-sized breadboards
Integrated LEDs and switches
Voltage selection jumper for array of switches
Two power rails
Direct access to fixed +5 V and +3.3 V supply pins
Canvas power enable switch and LED indicator
Model: 410-428
Digilent Digital Trainer Canvas 410-428
- Brands Digilent
- Product Code:410-428
- Availability:In Stock
-
$119.00
