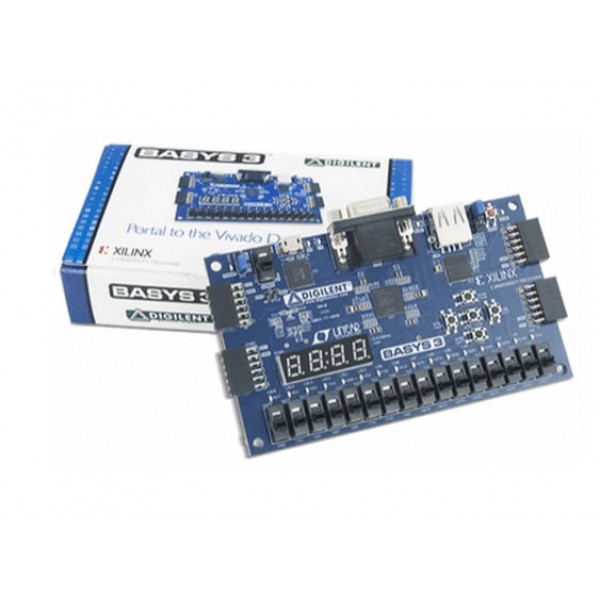

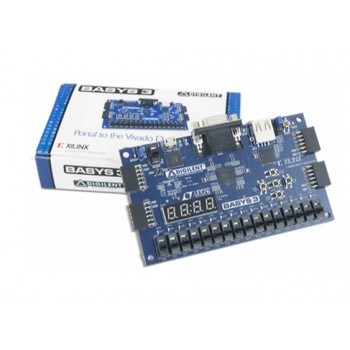

About: Digilent Basys 3 Artix-7 FPGA Trainer Board 410-183

Digilent Basys 3 Artix-7 FPGA Trainer Board 410-183 is a complete and ready-to use digital circuit development platform, it includes enough switches, LEDs, and other I/O devices to allow a large number of designs to be completed without the need for any additional hardware. There are also enough uncommitted FPGA I/O pins to allow designs to be expanded using Digilent Pmods or other custom boards and circuits, and all of this at a student-friendly price point.

The Basys 3 is designed exclusively for Xilinx’s Vivado Design Suite, and the WebPACK edition is available as a free download from Xilinx.

Features:

Features the Xilinx Artix-7 FPGA: XC7A35T-1CPG236C
33,280 logic cells in 5200 slices (each slice contains four 6-input LUTs and 8 flip-flops)
1,800 Kbits of fast block RAM
Five clock management tiles, each with a phase-locked loop (PLL)
90 DSP slices
Internal clock speeds exceeding 450 MHz
On-chip analog-to-digital converter (XADC)
Digilent USB-JTAG port for FPGA programming and communication
Serial Flash
USB-UART Bridge
12-bit VGA output
USB HID Host for mice, keyboards and memory sticks
16 user switches
16 user LEDs
5 user pushbuttons
4-digit 7-segment display
4 Pmod ports: 3 Standard 12-pin Pmod ports, 1 dual purpose XADC signal / standard Pmod port
Micro-B USB cable not included, but can be added for free with your Basys 3
