About: Digilent Analog Discovery Studio Portable Circuits Laboratory 410-384

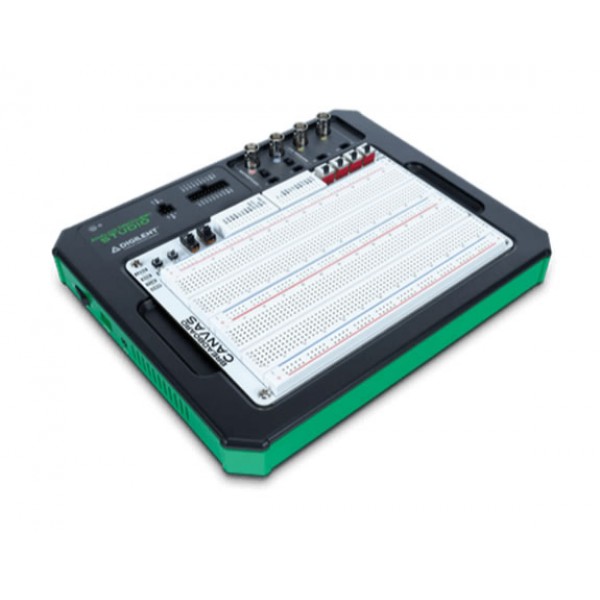

Digilent Analog Discovery Studio Portable Circuits Laboratory 410-384 is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory. Equipped with 13 instruments, including an Oscilloscope, Logic Analyzer, Spectrum Analyzer, Waveform Generator, and more; the Analog Discovery Studio provides an entire stack of bench-top instruments with a convenient, replaceable, and breadboardable interface, perfect for enabling student learning anywhere.

Students can access the Oscilloscope and Waveform Generators via breadboardable MTE cables, or industry standard BNC cables, and the Logic Analyzer, Pattern Generator, and Triggers can be accessed via MTE cables.

Analog Inputs:

Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Data Logger
Two analog input channels, accessible through BNC or MTE connectors
Channel type: differential (with MTE) or single-ended (with BNC)
Analog bandwidth with BNC cables: 30+ MHz @ 3dB
Analog bandwidth with MTE flywires: 9 MHz @ 3dB
Input range ±25 V (±50 V diff)
Input protected to ±50 V
14-bit resolution
Operate at 100 MS/s

Analog Outputs:

Used in the Waveform Generator and Network Analyzer
Two arbitrary waveform generator channels, accessible through BNC or MTE connectors
AC amplitude (max): ±5 V
Analog bandwidth (BNC or MTE connectors: 8 MHz @ 3dB)
Operate at 100 MS/s

Digital Inputs and Outputs:

Used in the Logic Analyzer, Pattern Generator, Protocol Analyzer, and Digital I/O
Channels: 16
Input logic standard: LVCMOS (1.8/3.3 V, 5 V tolerant)
Output logic standard: LVCMOS (3.3 V, 12 mA)

Model: 410-384
