About: Digilent Analog Discovery Pro ADP3450 Portable High Resolution Mixed Signal Oscilloscope

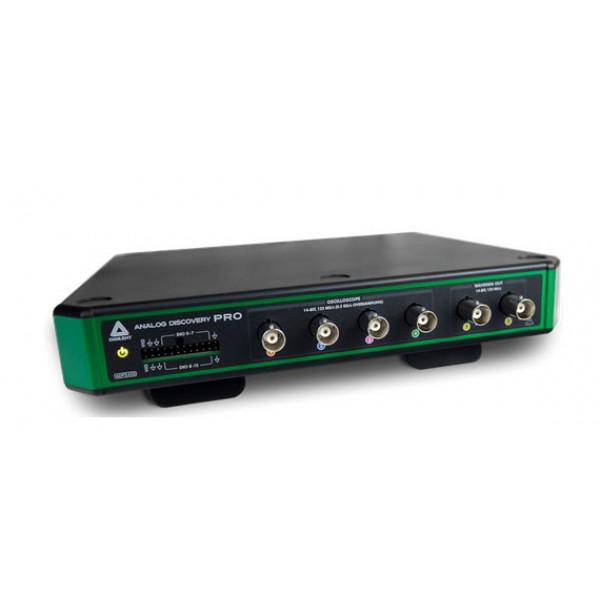

Analog Discovery Pro ADP3450 Portable High Resolution Mixed Signal Oscilloscope 410-394 take the analog and digital instruments from the internationally popular Analog Discovery and turn up key functionalities to meet the growing need for professional-level home electronics test benches. At the heart of each device is a four or two channel high-resolution oscilloscope, offering 14-bit resolution at up to 0.5 GS/s. Additionally, to meet the needs of an increasingly digital world, 16 dedicated digital channels make the Analog Discovery Pro ADP3450 a true mixed signal oscilloscope. With the included digital power supply, digital outputs, two channel arbitrary waveform generator, and two dedicated external triggers the Analog Discovery Pro comes with up to 13 instruments ready to analyze mixed signal systems through our free software, WaveForms.

Whether in Linux Mode using WaveForms SDK, or in Standard Mode connected via WaveForms, the Analog Discovery Pro features a variety of advanced triggering options. Instruments within WaveForms can be cross-triggered for example, activating an oscilloscope capture based on a received and decoded digital protocol. And external signals can trigger events using the two dedicated external trigger inputs on the back of the device. WaveForms provides these features configurable in the instruments themselves, or for more control or automation in one of the available scripting interfaces.

TL;DR: high-res, giga-sample speed, mega sample memory depth, mixed signal analysis, advanced triggers, and customizability - all included in a device smaller than a laptop.

Features:

Trigger sources: oscilloscope analog channels, function generator start, digital I/O lines, external triggers, manual trigger button
Trigger Modes
None, auto, manual (forced trigger), single
Analog Trigger
Edge, pulse, transition, condition, level, hysteresis, hold-off
Digital Trigger
Edge, level, pattern, glitch, protocol

Connectivity:

Device to computer: USB or Ethernet connection (in Linux or Standard Modes)
4 High-speed USB 2.0 ports for peripheral connection (enabled in Linux mode)
Enabled for set and tested WiFi dongles (in Linux Mode)

Model: 410-394

Digilent Analog Discovery Pro ADP3450 Portable High Resolution Mixed Signal Oscilloscope

Brands Digilent
Product Code:410-394
Availability:In Stock
