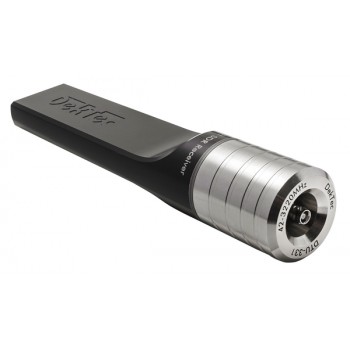

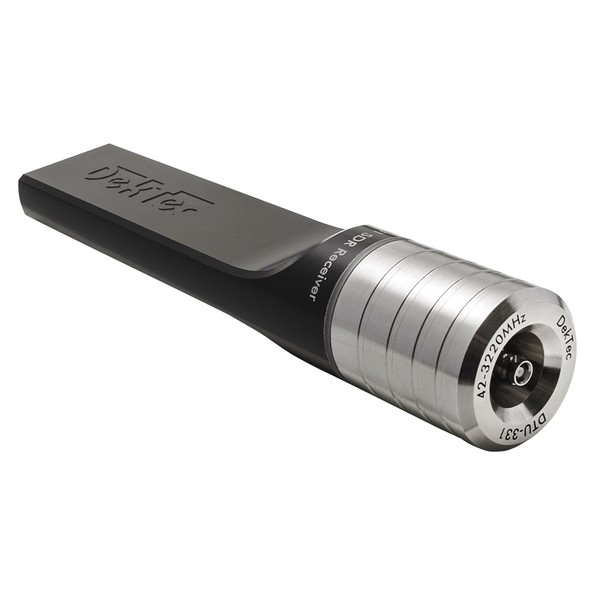

About: DekTec DTU-331-SX Portable all-standard RF Probe

DekTec DTU-331-SX Portable all-standard RF Probe offering Pocket sized SDR receiver ideal for on the go measurements of cable, terrestrial and satellite signals. A dual tuner approach allows fully agile tuning across 42 to 3220MHz.

The DTU-331 is an all-band, all-standard SDR receiver based on a dual tuner architecture. A satellite tuner with a 9..60MHz bandwidth enables reception of DVB-S signals, while a second tuner with a bandwidth up to 8MHz adds support for terrestrial and cable standards. A front-end, with an optional RF mixer in the path, allows down-mixing of terrestrial/cable signals located in the L-band before being fed to the 8MHz tuner. The same RF mixer can also be used to downmix satellite signals in the S-band back to the L-band frequencies, so that they can be received with the 60MHz tuner.

Features:

Dual tuners with I/Q demodulation, A-to-D and sample-rate conversion optimized for SDR technology
enabling reception of VHF/UHF and L-band signals
SDR technology enables reception of entire channels, outputting all DVB-T2 services in T2-MI and forwarding ATSC 3.0 packets to IP.
Free SDK (DTAPI) provides access to demodulated streams and advanced RF measurements.

Model: DTU-331-SX

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

Captcha

Enter the code in the box below

DekTec DTU-331-SX Portable all-standard RF Probe

Brands DekTec
Product Code:DTU-331-SX
Availability:In Stock

$3,406.00

About: DekTec DTU-331-SX Portable all-standard RF Probe

Model: DTU-331-SX
