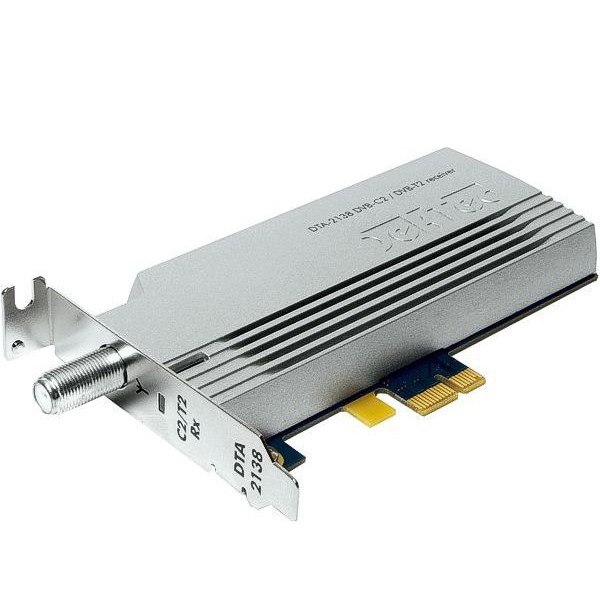

About: DekTec DTA-2138B Single-channel Cable/Terrestrial Receiver

DekTec DTA-2138B Single-channel Cable/Terrestrial Receiver hardware-based receiver for DVB-T2, T, C2, C and ISDB-T. With full support for single- and multi-PLP, as well as SISO and MISO, this low-profile card is perfectly compliant to DVB-T2 v1.3.1.

Features

Fully compliant with ISDB-T and DVB-T2 v1.3.1, including T2 Lite, but also with the legacy DVB-C and DVB-T.
Hardware-based demodulation with 0% CPU load.
The card provides reception status, RF level, demodulation status, MER, BER, L1 parameters and of course, the complete Transport Stream.

Applications

Network monitoring, using this universal receiver, of DVB-T2, DVB-C2 or ISDB-T networks.
As a test-receiver for DVB-T2, DVB-C2 or ISDB-T.
Re-multiplexing of DVB-C, DVB-T, DVB-C2, DVB-T2 or ISDB-t streams with MuxXpert.

Model: DTA-2138B-SL
