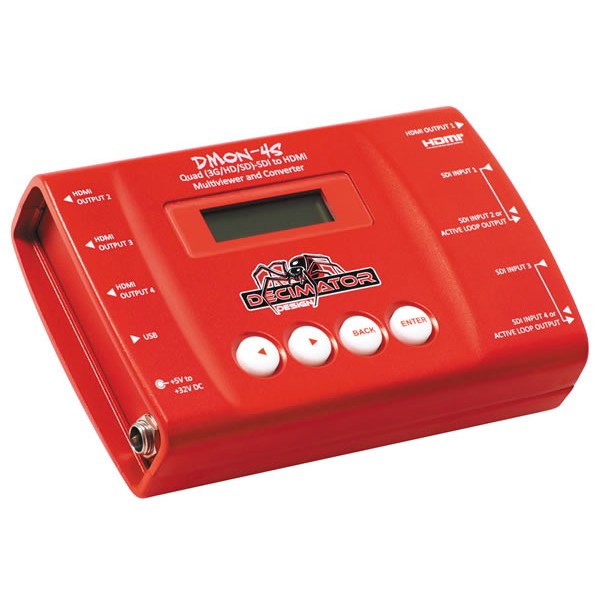

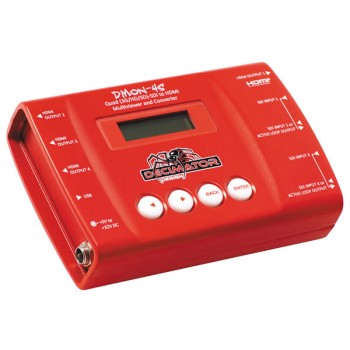

About: Decimator 4 Channel Multi-Viewer DMON-4S

Decimator 4 Channel Multi-Viewer DMON-4S is a Quad (3G/HD/SD)-SDI to HDMI Multi-Viewer and Converter includes 4 independent mini HDMI outputs that can each output any of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them. The DMON-4S is a truly portable converter, that incorporates our new easy to use LCD and button control system. Inputs 2 and 4 can be individually changed to output active loop copies of inputs 1 and 2 respectively.

For example you could use the unit to have:

4 independent SDI to HDMI converters
3 independent SDI to HDMI converters with a quad-split output
2 independent SDI to 2 x HDMI converters with loop through
A single SDI or Multi-View to 4 x HDMI outputs

(NEW) Multi-View mode offers:
Custom Layouts with various standard layouts
Load and restore Custom Layouts
Fast switching between inputs using Full-Screen scaling
Selection of audio from any input
16 Character UMD overlay per window with individual enables, custom positioning and size
Low latency buffering for each input allowing non-synchronous inputs
Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously Variable aspect ratios per window

This unit also includes:
USB port for control and firmware updates
Heavy duty metal box
Metal Thread Locking DC Power Socket
Power Supply, HDMI Cable and USB Cable
