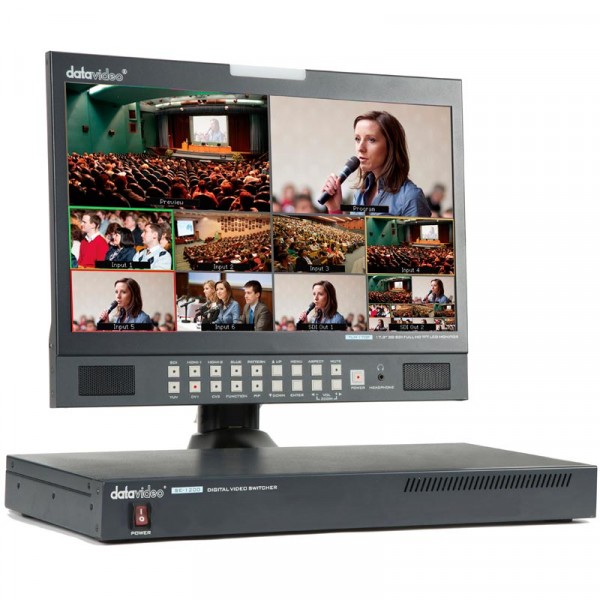

About: Datavideo SE-1200MU 1RU Rack Mountable 6 Input HD Mixer

Datavideo SE-1200MU 1RU Rack Mountable 6 Input HD Mixer enables you to switch seamlessly between video sources and blend high-quality digital content on the fly. SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.

SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC and Android tablet / iPad / Mac with the included SE-1200 software control panel.

SE-1200MU includes four SDI and two HDMI inputs and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations.

Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.

6 video inputs ( SDI x 4 + HDMI x 2)
Frame Sync on each input
Flexible Mix/Effects Processor with
2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
2 DSK, supporting Linear & Luma Key Modes
1 PIP (assignable to any of the 4 keyers
Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
Wipe, Mix & Cut Transitions
Full M/E Preview function
Any Input (1-6) can be used as a Frame store (Stills Store): Upto 24 images stored on SD Card
Assignable Outputs
Each SDI output can be switched in the Menu as:
PROGRAM (w/ DSK)
Clean PROGRAM (w/o DSK)
Clean PREVIEW (w/o DSK)
MULTISCREEN
Input 1-6
XPT (Cross Point Assignment)
PC & Tablet control
Remote streaming of Multi view out using built-in Motion JPEG Streaming processor
Tally output
GPI output
1U rack mount

Model: SE-1200MU
