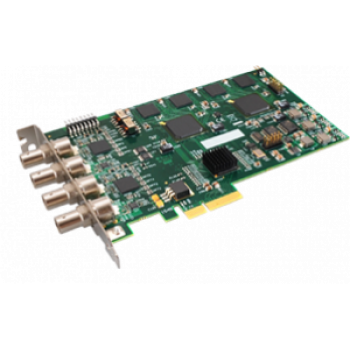

About: Datapath VisionSDI2 Dual Channel 3G-SDI HD-SDI Video Capture Card

The Datapath VisionSDI2 Dual Channel 3G-SDI HD-SDI Video Capture Card features a 650MB/s transfer bus bandwidth, supports Dual Channel SD-SDI, HD-SDI, and 3G-SDI, as well as 2K Digital Film Resolution. The Video Capture Card is perfect for a variety of uses, including Display Video Wall Controllers, Broadcasting, Machine Vision: Acquire SDI camera output, and Advanced Medical applications, thanks to its industry-beating performance. A robust software programme for setting the format of the input sources and presenting the data is included with the VisionSDI2 video capture. Simply plug in your video source to the capture card, launch the VisionSDI2 programme, and the footage will be instantly recognised and shown in a window on your desktop.

Features

Dual Channel PCI Express 3G/ HD/ SD capture card
Four lane PCI Express bus with maximum data rate of 650MB/sec
Support for all 3G/HD/SD video modes up to 1080p 60Hz
Loop through SDI  BNC connections
64MB per channel, total 128MB on board frame buffer
On board processor for real time mode and sync detection
Audio output for each channel to an onboard SPDIF header (use with the Datapath Audio Output Module)
High performance DMA to system memory or direct to graphics memory with scatter gather
High quality scaling (7x5 Polyphase Filter)
Input status indicator lights
Long range, single co-ax cable support.  (150metres capturing 1080p, 300 metres capturing SD)
16 cropping windows per capture channel
Wall Control support and SDK

Model: VisionSDI2
