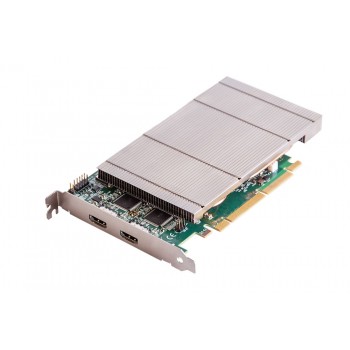

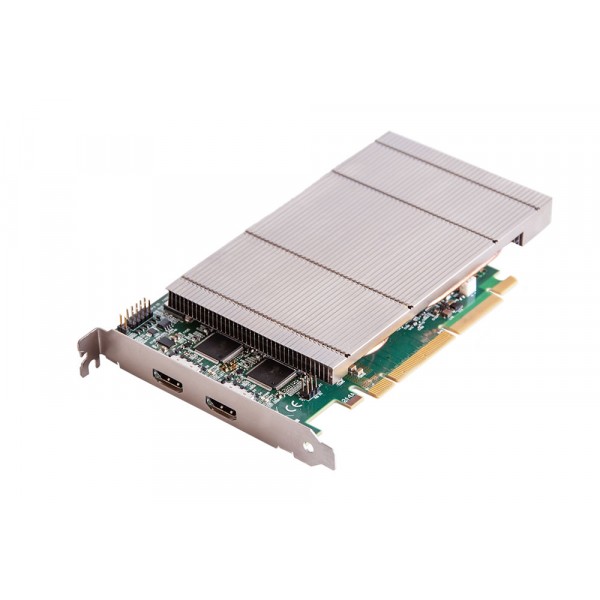

About: Datapath VisionSC-UHD2 4K Capture Card

Datapath VisionSC-UHD2 4K Capture Card Two HDMI 2.0 capture channels with HDCP 2.2 compatibility at 4K60p with 4:4:4 chroma sampling. The VisionSC-UHD2 delivers unmatched performance in frame grabber technology and completes our wildly popular VisionSC capture card series. The VisionSC-UHD2 supports frame synchronised ganging of inputs (dual 4K into 8K x 2K), flexible onboard Colour Space Converter, hardware timestamping, HDMI signal conditioning to support longer cable runs, automatic fast and reliable mode detection, LiveStream for a single line of capture latency, MultiStream for multiple capture instances, and much more. In order to provide excellent anti-aliasing during downscaling and precise pixel duplication when upscaling, an innovative hardware scaling engine uses polyphase multi-tap filtering.

Features

Two independent HDMI 2.0 capture channels supporting 4K60 with 4:4:4 chroma sampling
Eight lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
2GB Frame Buffer Memory
Full 10-bit processing pipeline
Fully scalable for use in high density systems supporting multiple capture cards
Full support of the Vision Performance feature set
Datapath unified Windows® and Linux® driver support
Supports HDMI certified premium cables up to 5M in length.
