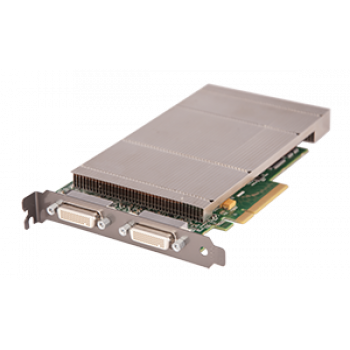

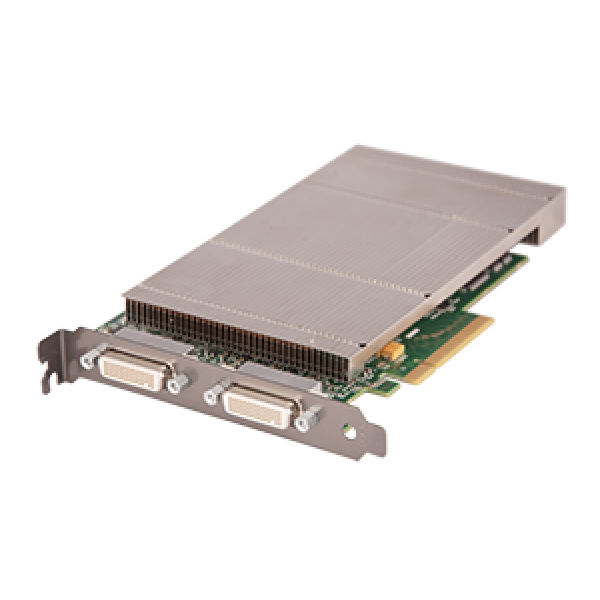

About: Datapath VisionSC-HD4+H Quad HDMI Capture Card

Datapath VisionSC-HD4+H Quad HDMI Capture Card has four onboard video capture channels all operating independently of each other all channels are HDMI 1.4a & HDCP compliant; channels 1 & 3 support 3840x2160 @ 30fps (297Mhz) and channels 2 & 4 support 1920x1080p 60fps (165Mhz).

This enables four separate 4 video sources to be captured and controlled simultaneously. The card also has embedded audio support across all four channels. The VisionSC-HD4+ is shipped with adapter cables for either HDMI or DVI.

Combining both Hardware and Software enhancements the Vision Performance Driver provides users with a variety of features to help them achieve their goals. Features include LiveStream, a low latency capture solution, MultiStream allowing for the independent control of multiple instances of a single capture, a hardware based time-stamping facility, automatic signal detection and more.

For streaming applications, the VisionSC-HD4+ can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows® Media Player. Any application compatible with Windows® DirectShow technology can use the VisionSC-HDMI4 due to it built-in WDM support.

Key Features

4 independent HDMI capture channels:
2 x HDMI 1.4 channels offering 3840 x 2160p @ 30fps
297Mhz per channel
2 x HDMI 1.4 channels offering 1920 x 1080p @ 60fps
165Mhz per channel
Support for HDCP
VisionSC-HD4+H is shipped with adapter cables for HDMI
