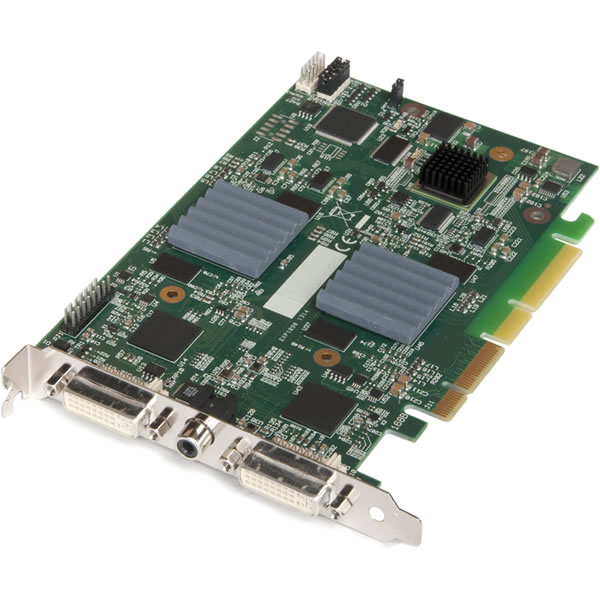

About: Datapath VisionAV-HD Triple Channel Capture Card

Datapath VisionAV-HD Triple Channel Capture Card offering three video capture inputs and two of which allow HD capture and the third of which supports SD composite video. It is possible to concurrently record these three separate video channels. Multiple audio capture channels are also added by VisionAV-HD, and these channels may be time-stamped in software to be synchronised with all video capture channels. A capture board having two HD DVI video channels, an additional composite video input, and complete analogue and digital audio capabilities that can all operate concurrently and independently.

Audio Features

The VisionAV-HD also adds embedded audio capture from the HDMI signal, which can be sychronised with the respective video channel. This video capture card provides balanced and unbalanced analog audio capture, through an optional audio module (the Datapath AM2)

Features

Four lane PCIe lane bus, Net 1.6 GB/s total capture bandwidth
Triple channel PCI Express capture card
Two DVI-I capture channels
HDMI/ DVI/ TGB/ YPbPr video capture
HDMI embedded Audio Capture and streaming
Low input to output capture latency
SD/ Composite capture channels
PAL, NTSC, SECAM up to 720 x 576 @ 16 Bit colour
Direct DMA to graphics memory of third party graphics cards
All standard features of the Vision range of video capture cards
Driver support included within the Datapath unified Windows driver
Driver support included with the Datapath unified Linux driver
