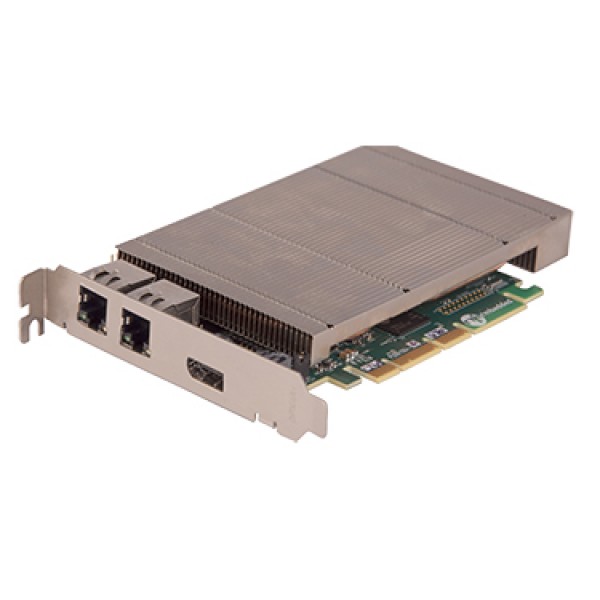

About: Datapath ActiveSQX H.264 Decoding Card

Datapath ActiveSQX H.264 Decoding Card is for professional AV solutions required from a variety of sources and places. A fully functional video wall display now routinely includes the capability of receiving and displaying video directly from internet sources like CCTV networks and remote desktop applications and combining them with local inputs. For systems that require a scalable hardware-based decoding solution, the Datapath ActiveSQX PCIe plug-in board is a potent addition. Several IP streams can be concurrently decoded by the ActiveSQX's specialised CPU using the on-board ethernet connectors. Several ActiveSQX cards can be utilised in a same system to enable project scalability, providing users more processing and more simultaneous decoding. These cards are fully Pcie compliant.

Datapath's SQX technology is compatible with industry standards for video compression and streaming. The ActiveSQX allows users to decode large numbers of high definition 1080p 60fps streams and multiple ActiveSQX cards reside in a single system to provide even more decoding capabilities.

In addition, the ActiveSQX can be placed in systems alongside graphics cards and video capture cards, such as the Datapath Vision range, to provide a powerful addition to any control room environment.

Product Features ActiveSQX

Dedicated Decoding card with Dual RJ45 Ethernet ports
On-board SQX Decoding Engine
Decode mulitple streams simultaneously
A minimum of 3 x 4096x2160p 30fps streams OR
6 x 1920x1080p 60fps streams OR
12 x 1920x1080p 30fps streams OR
50+ D1 resolution streams @ 30fps
Maximum will depend on H.264 Profiles and Levels of incoming media
800MB/s form each Ethernet 'input'
IP WINDOW CAROUSEL & PRE-BUFFERING
IP decodes that are to be included in a cyclical carousel are automatically pre-buffered
Improved performance
Smoother Playback

Model: ActiveSQX
