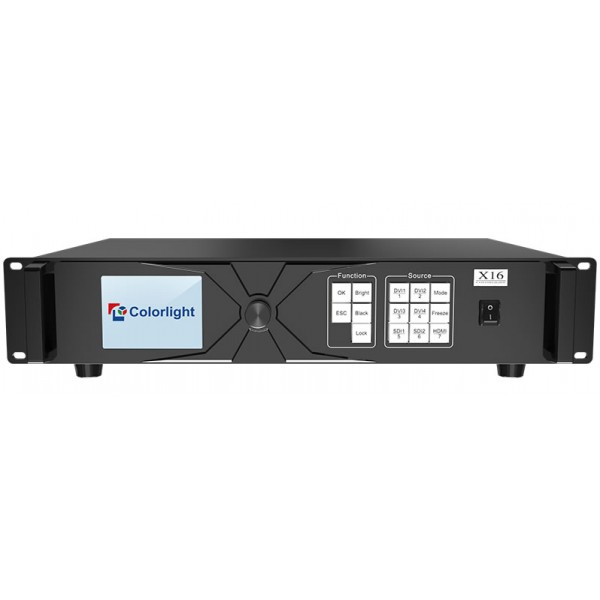

About: Colorlight X16 LED Controller

Colorlight X16 supports digital ports (HDMI, DVI, SDI), and seamless switching between signals it's powerful video signal receiving splicing and processing capacities and supports multiple signal inputs, with the maximum input resolution of 4K@4096×2160 pixels. It supports digital ports (HDMI, DVI, SDI), and seamless switching between signals. It supports splicing, broadcast quality scaling, and seven-pictures displays.

Features

Loading capacity: 8.88 million, maximum width/height: 8192 pixels

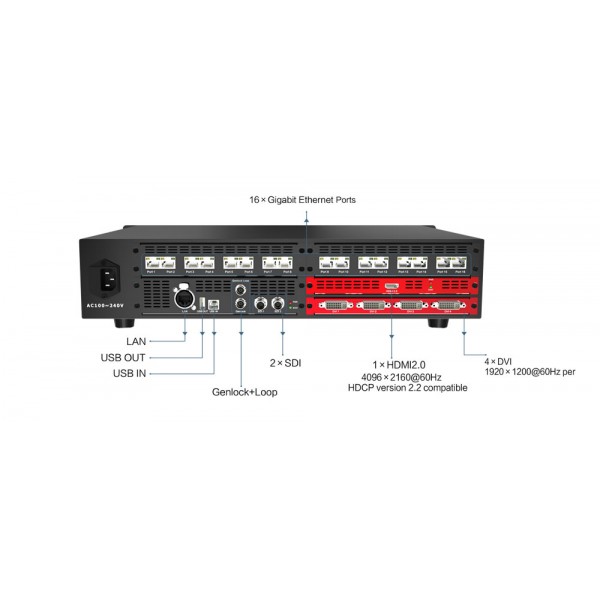

Supports various digital signal ports, including 1×HDMI 2.0, 4×DVI, 2×SDI
Supports input resolutions up to 4096×2160@60Hz
Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution
Supports seven-picture displays, the location and size can be adjusted freely
Supports HDCP 2.2
Dual USB2.0 for high speed configuration and easy cascading among controllers
Supports brightness and chromaticity adjustment
Supports improved gray-scale performance at low brightness
Compatible with all receiving cards, multifunction cards, and optical fiber converters of Colorlight
