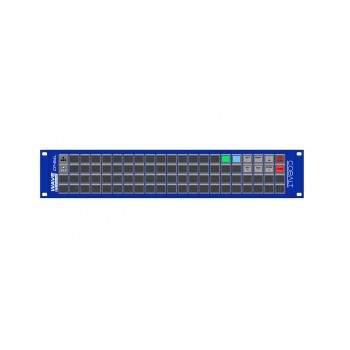

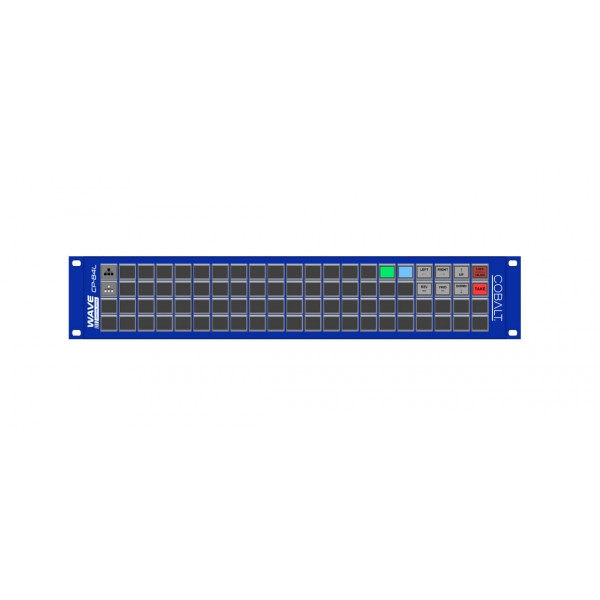

About: Cobalt Digital WAVE CP-84L 84-Button LCD Control Panel

Cobalt Digital WAVE CP-84L 84-Button LCD Control Panel has 84 back-lit LCD dot matrix display buttons. Red, Green, and Blue LEDs are used to illuminate each button, offering a variety of backdrop colors. A browser-based control system is used to regulate the color, brightness, button function, and LCD images. Factory defaults provide you a good place to start when customizing each button's 64x32 dot matrix visuals. The frame has removable rack mount "ears" for desktop use or other bespoke setups and is 2U - 3.5 inches tall by just 3.4 inches deep. The control panels of the WAVE series provide unmatched versatility, usability, and integration. On the back of the device, there is an Ethernet connector.

Features

84 R/G/B back-lit buttons with monochrome LCD graphics Ethernet with PoE++ compatibility
Compatible with Cobalt Digital WAVE Series Routers
(And other brands with SW-P-08 or PESA PNET protocol) Redundant DC power connections
Optically Isolated -
20 GPO (General Purpose Outputs)
20 GPI (General Purpose Inputs)
Quiet fan-less design
Optional 2nd DC power supply -
See Ordering Information for details
19 inch wide rack mount. 3.5 inches tall (2U) 3.4 inches
deep. Weight: 3 lbs. Five-year warranty

Model: WAVE CP-84L

Cobalt Digital WAVE CP-84L 84-Button LCD Control Panel

Brands Cobalt Digital
Product Code:WAVE CP-84L
Availability:In Stock
