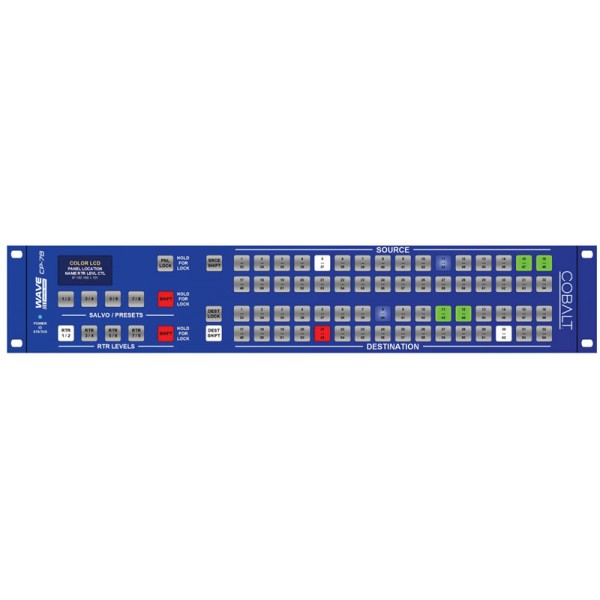

• Cobalt Digital WAVE CP-78 Remote Control Panel

About: Cobalt Digital WAVE CP-78 Remote Control Panel

Cobalt Digital WAVE CP-78 Remote Control Panel features 78 back-lit buttons unprecedented flexibility, ease of use & integration. Located on the rear of the unit is an Ethernet port with PoE++ capability for power and IP based communication. Add optional PoE++ capability with the + PoE Option. Built in SW-P-08 protocol comes standard as well 2 optically isolated General Purpose Outputs and 2 Inputs. Add 18 more GP Inputs and 18 GP Outputs with the +GPI Option. Dual DC power inputs provide for redundant operation.

The web-based browser control system includes button assignment, back-light color, setup of salvo presets, panel & button locks, setup of the GP/I/O system and other important system management operations. The WAVE Control Series panels allow different panel setups to be stored and recalled from the browser to provide extremely flexible operations. Recall complex configurations for various operations.


Features

78 R/G/B back-lit buttons with clear key caps and front panel LCD Status display
Compatible with Cobalt Digital WAVE Series Routers
(And other brands with SW-P-08 communications protocol)
Ethernet with PoE++ compatibility. Add Option +POE
Redundant DC power connections
Optional 2nd DC power supply
See Ordering Information for details
Optically Isolated
2 GPO (General Purpose Outputs)
2 GPI (General Purpose Inputs)
Add 18 more GP Inputs and 18 GP Outputs with the +GPI Option for a total of 20 GPI/O
Quiet fan-less design
19 inch wide rack mount. 3.5 inches tall (2U) 3.4 inches deep. Weight: < 3 lbs

Model: WAVE CP-78

Write a review

Note: HTML is not translated!
   Bad           Good

Cobalt Digital WAVE CP-78 Remote Control Panel

  • $4,995.00
