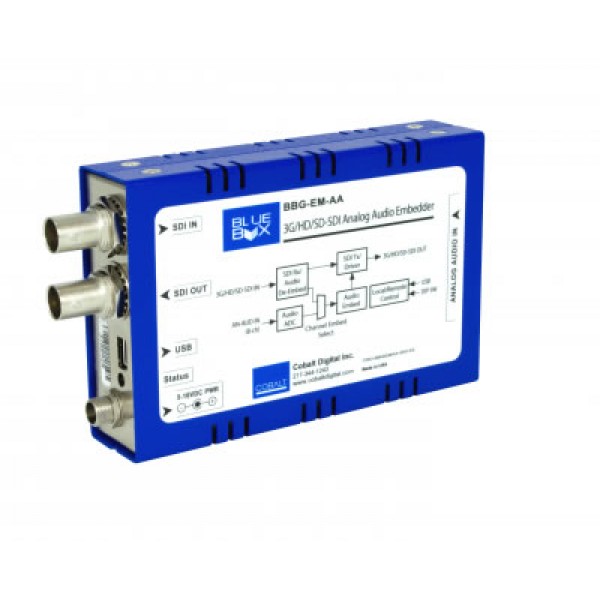

About: Cobalt Digital BBG-EM-AA 3G/HD/SD Analog Audio Embedder

Cobalt Digital BBG-EM-AA 3G/HD/SD Analog Audio Embedder provides embedding from professional balanced audio at pro 24 dBu to 0 dBFS to levels using full 24-bit conversion. Embed selection can be configured using the device DIP switches or by using an intuitive GUI application that communicates with BBG-EM-AA over a PC's USB port. The GUI app allows dynamic configuration control, status display, audio meters, tone generators, and other advanced control functions not commonly found on "throwdown" packages. When configured using the GUI app, the USB connection can be removed with all settings held in non-volatile device memory.

Eight balanced analog audio inputs with user-selectable direct embedding to groups 1 thru 4. DB-25 connector provides compact footprint. Balanced analog audio inputs can utilize direct connection to standard DB-25 connectors, or by using accessory DB-25/XLR breakout cable (available separately).
Configurable using device DIP switches or USB GUI remote control offering dynamic configuration control, status display, audio meters, tone generators, and other advanced control functions not commonly found on "throwdown" packages. USB GUI audio meters provide ready assessment of content presence and line-up.
Balanced audio embed with full 24 dBu-to-0 dBFS 24-bit conversion
Small rugged portable standalone package ideal for portable installations. Compact size and low weight design easily affixes directly to host device chassis. Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces.
Rugged construction backed with a five-year warranty

Model: BBG-EM-AA
