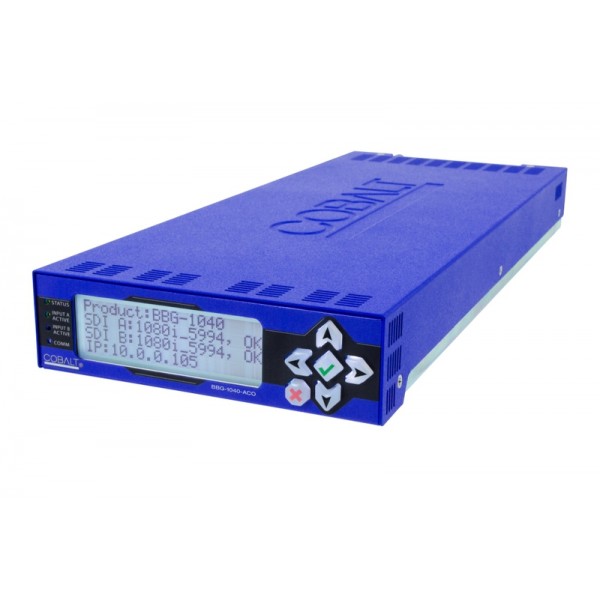

About: Cobalt Digital BBG-1040-ACO Multi-Input Modular Framesync

Cobalt Digital BBG-1040-ACO Multi-Input Modular Framesync with Auto-Changeover and Character Burn provides a high-density standalone modular unit that offers unprecedented multi-input support, flexibility, and ease of use and integration. Multiple SDI input ports allow manual selection of input, or failover to alternate inputs (Auto-Changeover) on loss of input conditions as well as user-configurable subjective criteria such as black/frozen frame or audio silence. Quality Check allows failover to alternate inputs based on user-configurable subjective criteria such as black/frozen frame or audio silence. Two discrete character burn strings can be inserted on output video, with each string inserted as static text and/or insert only upon LOS. Import of user trouble slate graphics is also supported in addition to standard test pattern insert as an input LOS marker. A moving-box insertion can be enabled to serve as a dynamic raster confidence check even when the input video image is static.

BBG-1040-ACO Features:
Dual relay protected input -- Signal passes even without power
Smart Auto-Changeover input
Black raster
Frozen Video
Loss of Audio
Character Burn on loss of video input
Framesync for test pattern generation on loss of input
Moving box on loss of video input
Web-based user interface/remote control, and Front Panel LCD local control

Model: BBG-1040-ACO
