About: Cobalt Digital 9980-2CSC-3G

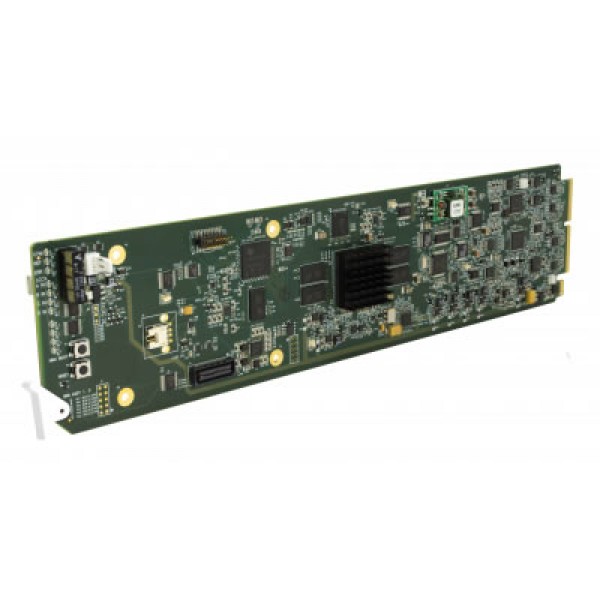

Cobalt Digital 9980-2CSC-3G 3G/HD/SD-SDI Dual Path RGB Color Space Corrector and Frame Sync with Integrated Test Pattern Generators and Remote Control via OGCP-9000/CC Control Panel, DashBoard, or HTML5 WebGUI. The space-saving design of the 9980-2CSC provides for high density, allowing two cards to be collocated in adjacent slots and served by a single, standard width “split” rear module. This provides four video paths per each pair of slots, readily providing 20 channels of processing in only 10 slots.

Features:

Two independent processing paths per card – 20 channels of processing in only 10 slots
Full dual-channel independent RGB color correction (offset, gain, gamma)
Dual frame sync with full H/V offset and manual/LOS video pattern generator. Color corrector preceded by pattern generator allows custom offset calibrations for on-set monitor/camera colorimetry characteristics.
Passes entire YCbCr gamut in unity gain configuration
Extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip
Phase preserved when applying saturation clip
One button bypass of color correction for comparison purpose
Low-power/high-density design – less than 18 Watts per card
Remote control/monitoring via DashBoard™ software or OGCP-9000/CC remote control panel. Award-winning OGCP-9000/CC Remote Control Panel provides fast and intuitive color correction control.
Five year warranty
