About: Cobalt Digital 9940-ACO

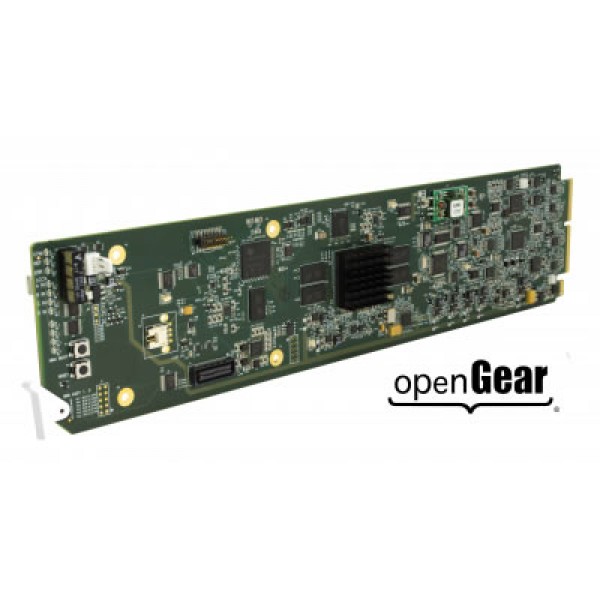

Cobalt Digital 9940-ACO 3G/HD/SD-SDI Multi-Input Intelligent Auto-Changeover Switch and Trouble Slate Inserter allows manual selection of input, or failover to alternate inputs (Auto-Changeover) on loss of input conditions as well as user-configurable Video Quality Event intelligent assessments such as black/frozen frame or audio silence. Also included standard is closed captioning absence/presence detection for CEA 608/708 and line 21 SD closed captioning.

Video Quality or Closed-Captioning event status can independently be propagated for each event type as GPO, automated alert email, input routing changes, or card user presets you can configure to provide any number of special actions such as routing changes or burn-in text alert messages. A user trouble slate graphic file can be uploaded to the card, which in turn can be automatically inserted in active video if any Video Quality Event triggered errors occur.

User trouble slate graphic import allows trouble slate to be displayed upon user-selectable input error conditions (such as CC or audio loss, or frozen frame)
Dual independent burn-in text string insertion allows condition-based insertion (such as basic ID text for valid input and different text message for failover conditions) Timecode processing can prioritize, filter for, and convert between specific SMPTE embedded-video or audio LTC, with output/burn-in timecode using selected format
Frame sync with full H/V offset and manual/LOS video pattern generator. Frame sync can also convert raster format between 29.97/59.94 and 30/60 formats.
Full audio crosspoint with delay control available for all audio outputs
Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels
Five year warranty

Model: 9940-ACO
