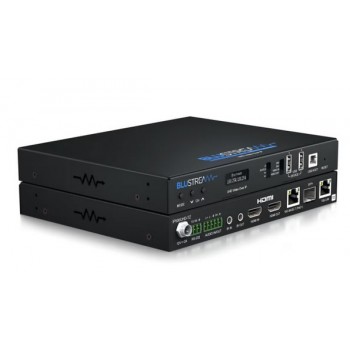

• Blustream IP500UHD-TZ Multicast UHD Video Transceiver

About: Blustream IP500UHD-TZ Multicast UHD Video Transceiver

Blustream IP500UHD-TZ Multicast UHD Video Transceiver SDVoE AV over IP solution that provides the highest-quality, un-compromised 18Gbps 4K with zero latency Audio/Video extension over copper or optical fibre 10Gb Managed Networks. The IP500UHD-TZ includes support for HDMI 2.0 including distribution of HDR (High Dynamic Range), 10-bit colour content, and multi-channel HD audio signals.

Features


Advanced 18Gbps UHD Video over 10Gb Managed Network with visually lossless compression and zero latency
Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4, and with 10/12-bit HDR sources, including Dolby Vision
Transceiver can be configured as a point of transmission or a receiver as required
Supports video scaling and single-frame switching
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio and DTS:X transmissions
Support fixed signal routing function for IR, RS-232, CEC and USB
USB end-to-end / point-to-point pass-through
Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
Bi-directional 10/100/1000BaseT Ethernet pass-through
Supports bi-directional 5V or 12V IR pass-through
PoE+ (Power over Ethernet) to power Blustream Multicast products from PoE+ switch
HDCP 2.2 compliant with advanced EDID management
Local 12V 2.5A power input (should Ethernet switch not support PoE+, PSU sold separately)
Features 4 operational modes:
Matrix distribution (requires 10Gb network switch)
Video wall (requires 10Gb network switch)
Multiview mode (requires 10Gb network switch)
One-to-one HDMI extender (no network switch required)

Model: IP500UHD-TZ

Write a review

Note: HTML is not translated!
   Bad           Good

Blustream IP500UHD-TZ Multicast UHD Video Transceiver

  • Brands Blustream
  • Product Code:IP500UHD-TZ
  • Availability:In Stock
  • $2,040.00
