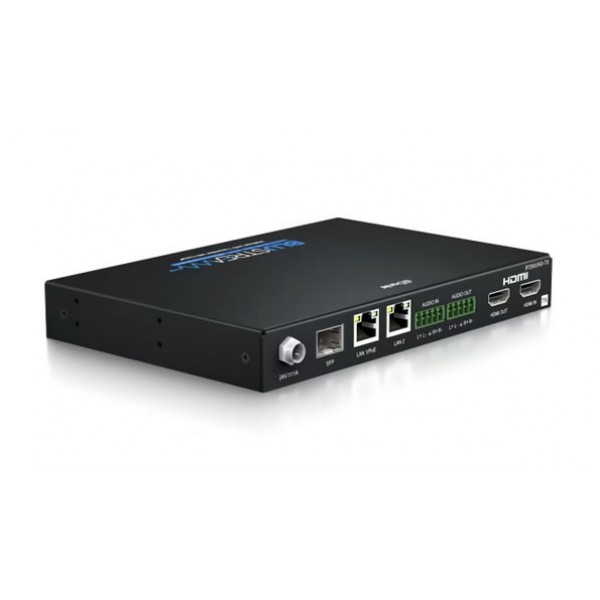

About: Blustream IP250UHD-TX Multicast UHD Video Transmitter

Blustream IP250UHD-TX Multicast UHD Video Transmitterindustry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 10Gb HDMI, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture, or greater distances using the in-built fibre SFP port.

Features

Video input: 1 x HDMI Type A, female
Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, female
Latency: 1 Frame (16-33ms depending on frame rate) No latency on HDMI Loop out
Audio input:1 x 5-pin Phoenix connector
Audio Output Connectors: 1 x 5-pin Phoenix connector
Ethernet port: 2 x LAN RJ45 connector
Fibre Port: 1 x SFP connector (fibre module not supplied)
RS-232 serial port: 1 x 3-pin Phoenix connector
USB/KVM Port: 1 x USB-Type B
IR input: 1 x 3.5mm stereo jack
IR output: 1 x 3.5mm mono jack
PoE draw: 8.0W (typical), 9.2W (max load)
Firmware Update: 1 x Micro-USB
Mounting kit included

Model: IP250UHD-TX

Blustream IP250UHD-TX Multicast UHD Video Transmitter

Brands Blustream
Product Code:IP250UHD-TX
Availability:In Stock
