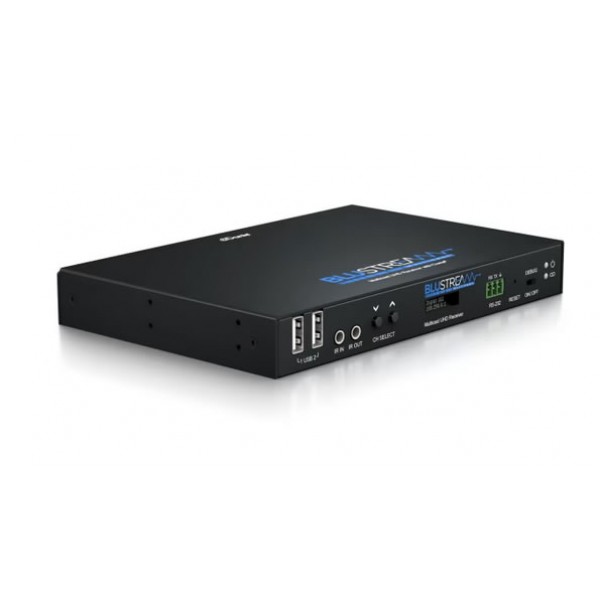

About: Blustream IP250UHD-RX Multicast UHD Video Receiver

Blustream IP250UHD-RX Multicast UHD Video Receiver is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that, using visually lossless compression technology, delivers 10Gb HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture, or greater distances using the in-built Fibre SFP port. The unit can be powered via PoE from the network switch or locally should the switch not support PoE.

Features

Video Input Connectors: 1 x LAN RJ45 connector,
Video Output Connectors: 1 x HDMI Type A, female
Latency: 1 Frame (16-33ms depending on frame rate)
Audio input: 1 x Optical (S/PDIF)
Audio Output Connectors: 1 x 5-pin Phoenix connector
Ethernet port: 2 x LAN RJ45 connector
Fibre Port: 1 x SFP connector (fibre module not supplied)
RS-232 serial port: 1 x 3-pin Phoenix connector
USB/KVM Port: 2 x USB-Type A
IR Input ports: 1 x 3.5mm stereo jack
IR Output ports: 1 x 3.5mm mono jack
PoE draw: 8.0W (typical), 9.2W (max load)
Firmware Update: 1 x Micro-USB
Mounting kit included
