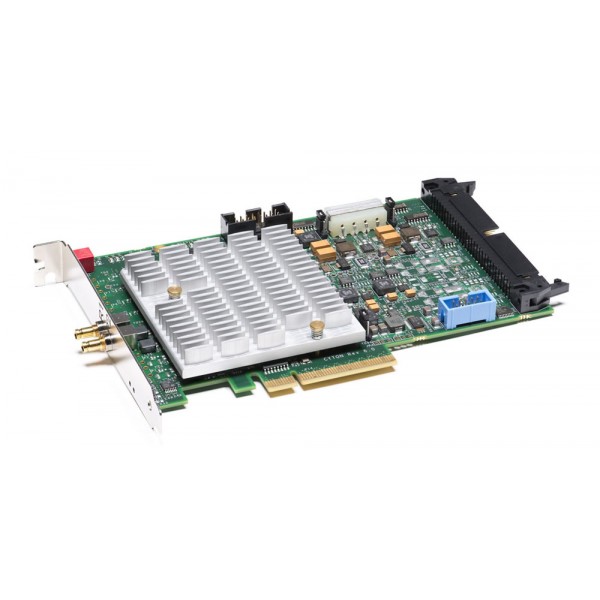

About: BitFlow Cyton CXP2 Frame Grabber CYT-PC2-CXP2

The BitFlow Cyton CXP2 Frame Grabber sophisticated DMA engine to handle the demands of new camera interface standards. CXP cameras will soon be able to put out streams of random sized ROIs, something our previous generation DMA engine was not capable of. The CYT-PC2-CXP2 is the foundation for today and tomorrow’s frame grabbers, whether it’s CoaXPress or whatever new standards emerge from the Machine Vision industry.

Features

Half-Size x8 PCI Gen 3.0 Express Board
CoaXPress 1.1 compliant (supports 1.0 and 1.1. cameras)
Supports one or two CXP-6 cameras
Supports multi-link CXP-6 cameras (up to two CXP links)
Supports CXP speeds from 1.250 to 6.250 Gb/S
Supports simultaneous capture from four 6.250 Gb/S CXP links
Provides one CXP-6 uplink to the camera (bulk data uploads, zero latency triggers)
Low speed uplink also supported on all links
Uses DIN 1.0/2.3 connectors
Uses CXP standard connector spacing
Provides power for all cameras (up to 13 Watts per link)
Provides Safe Power, full protection from all power line faults
Cameras are Plug and Play with automatic link speed detection
Cable lengths of up to 40 meters are supported
Cameras can be accurately synchronized, or can be completely independent
PCI Express x8 Gen 2.0 interface (also works in x16 slots)
Compatible with PCI Express Gen 1.0 slots
Separate I/O for each camera
Highly deterministic, low latency frame grabber to camera trigger
Supports simultaneous communications to all cameras
Windows “sees” a separate frame grabber for each camera
FlowThru technology means no on-board memory is needed
StreamSync acquisition engine optimizes synchronization between acquisition and DMA
StreamSync buffer manager maximize DMA channel efficiency
Acquire variable length frames from line scan cameras
Acquire image sequences well beyond the 4GB barrier
No frame rate limit
Triggers and encoders for external control of acquisition
Programmable signal generator for camera control (independent for each camera)
Quadrature encoder support including sophisticated triggering schemes
Encoder divider/multiplier
Drivers, utilities and examples for Windows and Linux
Supported on both 32-bit and 64-bit platforms
Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
Full GenICam support for control and capture
All models are “half size” PCIe cards
RoHS compliant
