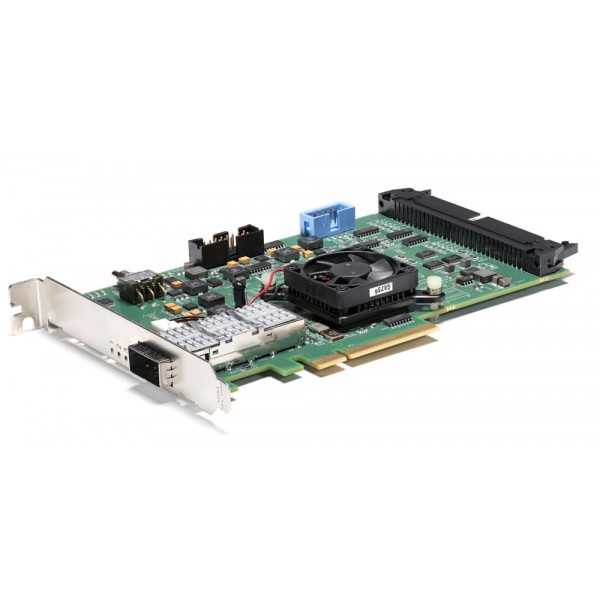

About: BitFlow Claxon Fiber CLX-PC3-FXP4 Frame Grabber

The BitFlow Claxon Fiber CLX-PC3-FXP4 Frame Grabber supports all QFSP+ compatible fiber cable assemblies. Fiber connection always runs at 10 Gb/S which is the equivalent of 12.5 Gb/S CXP and no firmware change needed to go from multi-link cameras to multiple cameras allowing user to easily migrate to the newer cameras without major software changes.

Features

Half-Size x8 PCI Express Gen 3.0 frame grabber
CoaXPress 1.1/2.0 compliant
Supports one quad link camera, two dual link cameras and four single link cameras
Supports CXP speeds from 1.25 to 12.50 Gb/S
Fiber connection always runs at 10 Gb/S (which is the equivalent of 12.5 Gb/S CXP)
No firmware change needed to go from multi-link cameras to multiple cameras
Supports all QFSP+ compatible fiber cable assemblies
Supports cables lengths well over a kilometer
Cameras are Plug and Play with automatic link speed and camera parameter detection
Cameras can be accurately synchronized, or can be completely independent
Compatible with all PCIe x8/x16 slots Gen 1.0/2.0/3.0
Separate I/O for each camera
Highly deterministic, low latency uplink camera trigger
Windows “sees” a separate virtual frame grabber for each camera
StreamSync technology maximizes data through-put while minimizing image latency
Acquire variable length frames from line scan cameras
Triggers and encoders for external control of acquisition
Drivers, utilities and examples for Windows and Linux
Supported on both 32-bit and 64-bit platforms
Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
Full GenICam support for camera control and capture
Programmable signal generator for camera control (independent for each camera)
Quadrature encoder support including sophisticated triggering schemes
Encoder divider/multiplier
Supports BitFlow BitBox
RoHS compliant
REACH compliant
