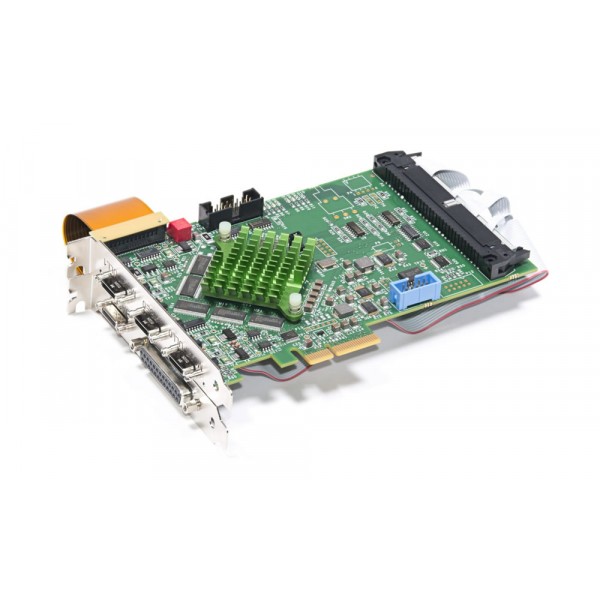

About: BitFlow Axion 2xE-SIO Camera Link Frame Grabber AXN-PC2-CL-2xE-SIO

BitFlow Axion 2xE-SIO limited set of I/O options are available on a 25 pin connector on the auxiliary bracket of this board. Part of the included options available are the ability to utilize a second encoder for this two camera frame grabber.

Features

Camera Link 2.0 Compliant
Supports two base, medium, full, 80-bit (10-tap) CL cameras
Supports CL clocks up to 85 MHz
Industry standard SDR Camera Link connectors
Supports PoCL and non-PoCL cameras
Support dual connector PoCL
Provides Safe Power, full protection from all power line faults
Cameras can be accurately synchronized, or can be completely independent
PCI Express x4 Gen 2.0 interface (also works in x8 and x16 slots)
Compatible with PCI Express Gen 1.0 slots
Windows “sees” a separate frame grabber for each camera
Separate I/O for each camera
SDR Camera Link connectors
Small I/O located on main bracket
Highly deterministic, low latency frame grabber to camera trigger
Supports simultaneous communications to all cameras
FlowThru technology means no on-board memory is needed
StreamSync acquisition engine optimizes synchronization between acquisition and DMA
StreamSync buffer manager maximize DMA channel efficiency
Acquire variable length frames from line scan cameras
Acquire image sequences well beyond the 4GB barrier
No frame rate limit
Triggers and encoders for external control of acquisition
Programmable signal generator for camera control (independent for each camera)
Quadrature encoder support including sophisticated triggering schemes
Encoder divider/multiplier
Drivers, utilities and examples for Windows and Linux
Supported on both 32-bit and 64-bit platforms
Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
Full GenICam support for control and capture
RoHS compliant
