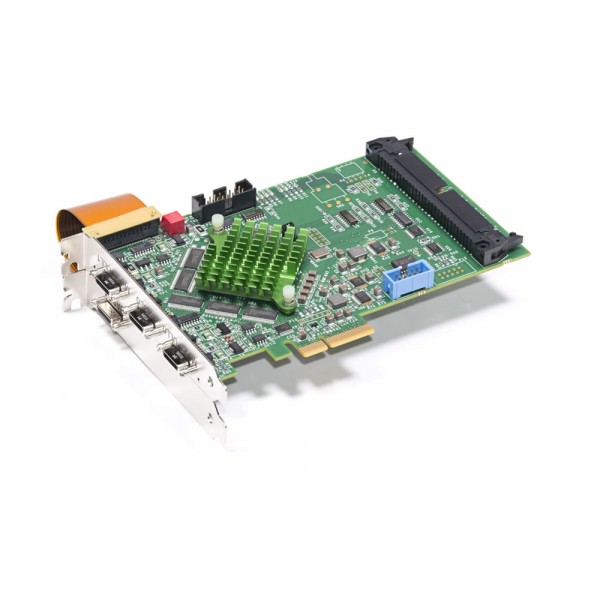

About: BitFlow Axion 2xE Frame Grabber AXN-PC2-CL-2xE

BitFlow Axion 2xE Frame Grabber continuously improved and updated their Camera Link frame grabbers. The Axion 2xE is the culmination of all of these improvements, the most powerful CL frame grabber BitFlow has ever manufactured.

The BitFlow AXN-PC2-CL-2xE also benefits from other products in BitFlow’s line up. The Axion-CL uses the Cyton-CXP’s backend: the StreamSync DMA engine and buffer manager. A brand new PCIe Gen 2 interface, with DMA optimized for modern (fully loaded, fully busy) computers.

Features

Camera Link 2.0 Compliant
Supports two base, medium, full, 80-bit (10-tap) CL cameras
Supports CL clocks up to 85 MHz
Industry standard SDR Camera Link connectors
Supports PoCL and non-PoCL cameras
Support dual connector PoCL
Provides Safe Power, full protection from all power line faults
Cameras can be accurately synchronized, or can be completely independent
PCI Express x4 Gen 2.0 interface (also works in x8 and x16 slots)
Compatible with PCI Express Gen 1.0 slots
Windows “sees” a separate frame grabber for each camera
Separate I/O for each camera
SDR Camera Link connectors
Highly deterministic, low latency frame grabber to camera trigger
Supports simultaneous communications to all cameras
FlowThru technology means no on-board memory is needed
StreamSync acquisition engine optimizes synchronization between acquisition and DMA
StreamSync buffer manager maximize DMA channel efficiency
Acquire variable length frames from line scan cameras
Acquire image sequences well beyond the 4GB barrier
No frame rate limit
Triggers and encoders for external control of acquisition
Programmable signal generator for camera control (independent for each camera)
Quadrature encoder support including sophisticated triggering schemes
Encoder divider/multiplier
Drivers, utilities and examples for Windows and Linux
Supported on both 32-bit and 64-bit platforms
Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
Full GenICam support for control and capture
RoHS compliant
