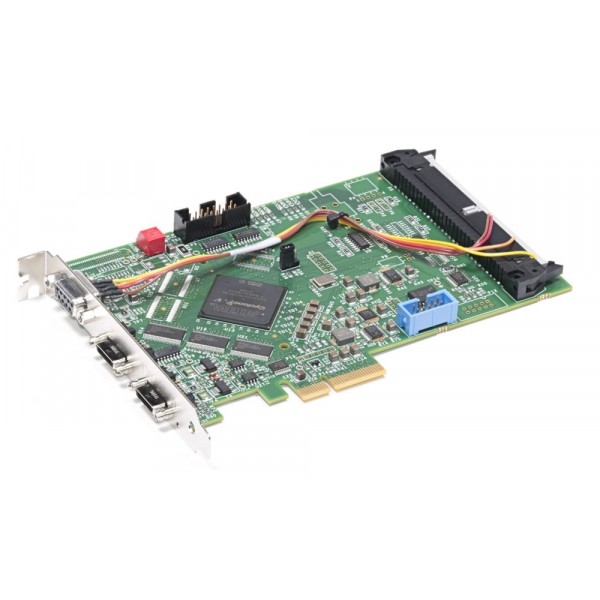

About: BitFlow Axion 1xE-DS9T Frame Grabber

BitFlow Axion 1xE-DS9T Frame Grabber, a full set of I/O options are available by integrating the CONN-DEV-C62 . However in some cases, there may not be enough room for the entire I/O cable and also not all I/O options are needed. With the Axion 1xE-DS9T, a limited set of I/O options are available on a 9 pin connector on the bracket of this board. This board supports single ended encoders (TTL) only.

Features

Camera Link 2.0 Compliant
Supports one base, medium, full, 80-bit (10-tap) CL camera
Supports CL clocks up to 85 MHz
Industry standard SDR Camera Link connectors
Supports PoCL and non-PoCL cameras
Support dual connector PoCL
Provides Safe Power, full protection from all power line faults
PCI Express x4 Gen 2.0 interface (also works in x8 and x16 slots)
Compatible with PCI Express Gen 1.0 slots
SDR Camera Link connectors
On bracket nine pin I/O connector
Highly deterministic, low latency frame grabber to camera trigger
Supports simultaneous communications to all cameras
FlowThru technology means no on-board memory is needed
StreamSync acquisition engine optimizes synchronization between acquisition and DMA
StreamSync buffer manager maximize DMA channel efficiency
Acquire variable length frames from line scan cameras
Acquire image sequences well beyond the 4GB barrier
No frame rate limit
Triggers and encoders for external control of acquisition
Programmable signal generator for camera control (independent for each camera)
Quadrature encoder support including sophisticated triggering schemes
Encoder divider/multiplier
Drivers, utilities and examples for Windows and Linux
Supported on both 32-bit and 64-bit platforms
Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
Full GenICam support for control and capture
RoHS compliant
