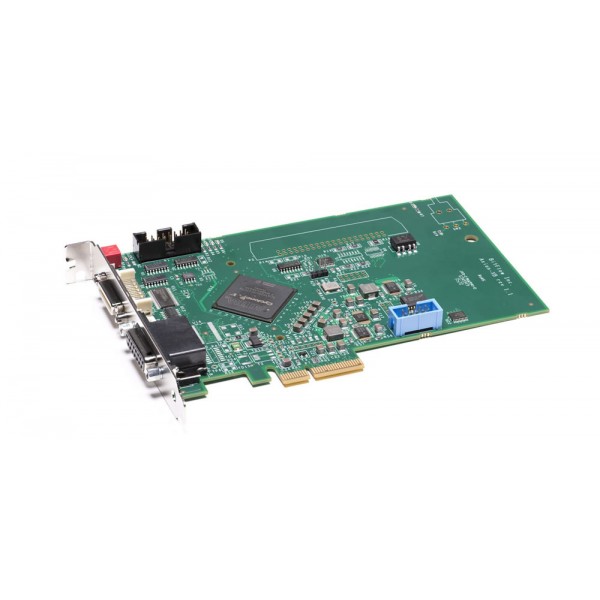

About: BitFlow Axion 1xB Camera Link Frame Grabber AXN-PC2-CL-1XB

The BitFlow Axion 1xB Camera Link Frame Grabber AXN-PC2-CL-1XB benefits from other products and uses the Cyton-CXP’s backend, the StreamSync DMA engine and buffer manager. A brand new PCIe Gen 2 interface, with DMA optimized for modern (fully loaded, fully busy) computers. The Axion 1xB is the most powerful CL frame grabber BitFlow has ever manufactured. A natural addition to this family CL Base version.

Features

All tap Camera Link tap formats are supported
Supports a single Base CL camera
Supports Power over Camera Link (PoCL)
Supports both PoCL and non-PoCL cameras
Provides Safe Power – full protection from all CL power line faults
Fully backwards compatible with non-PoCL cameras and cables
Half-Size x4 PCI Express Board
Acquire up to 24 bits at 85 MHz
Both CL and I/O connector on one bracket (only one slot needed)
MDR Camera Link connector
StreamSync technology means that no on-board memory is needed, even with the fastest cameras
DMA at data rates up to 1.8 GB/S
Supports images up to 32K pixels x 16M lines
No frame rate limit (tested to over 250K FPS)
Triggers and encoders for external control of acquisition
Sophisticated triggering modes for complex applications
Acquire, trigger controlled, variable length frames with line scan cameras
Quadrature encoder support including sophisticated triggering schemes
Encoder divider/multiplier
Two general purpose, on-board timing generators (exposure control, strobe, solenoids, etc.)
RoHS compliant

Software Specifications

Drivers, utilities, and examples for Windows and Linux
Supported on both 32-bit and 64-bit platforms
Camera Link Specification compliant serial port support
Fully supports GenICam based CL cameras (CL Protocol)
GenTL producer supplied for working the GenICam based applications
GenICam based camera control application, Ximilon, available for free
Drivers for most 3rd party processing environments (e.g. HALCON, LabVIEW, VisionPro, MATLAB, etc.)
Acquire image sequences well beyond the 4GB barrier
