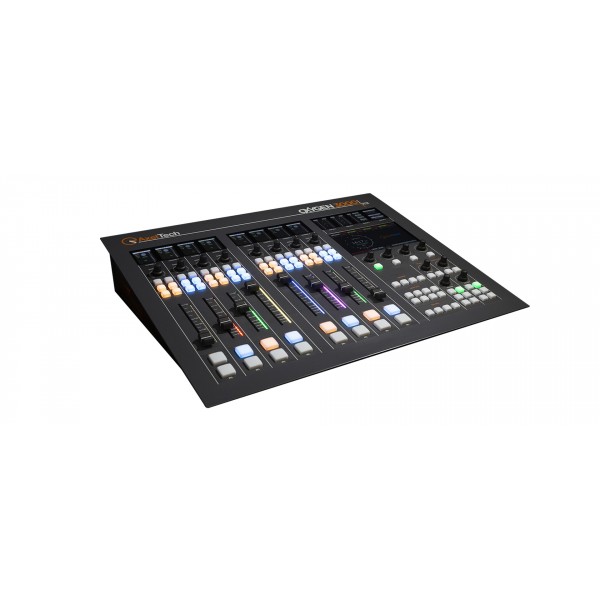

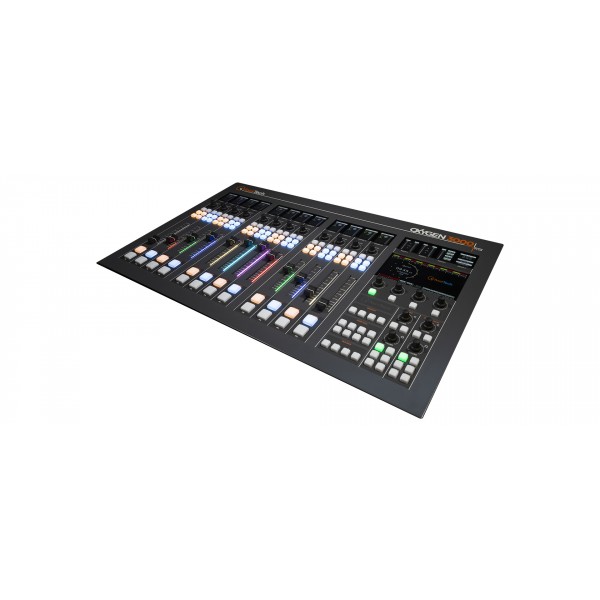

About: Axel Oxygen 3000 Plus Digital Broadcast 12 Fader Audio Console

Axel Oxygen 3000 Plus Digital Broadcast 12 Fader Audio Console OXYGEN-3000-PLUS-12F-1AIO is the best-equipped console of its category offering a full range of powerful features for Radio On-Air and Production. Available with Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, Bluetooth, Dante™ AoIP, Telco, Presenter Talk Box, Streaming In/Out.

The DSP based processing guarantees high-end quality audio and of course you will find the easiness of use that marks all the AxelTech’s products.
Oxygen Remoter Software, which enables up to 8 additional virtual faders for a full I/O control is available on Oxygen 3000 Plus as it is, for free, in any Oxygen Digital Console model.

Microphone Inputs

Up to 5 Microphone Inputs with Automix on each Audio I/O Board
3 Mic on XLR and 2 Mic on RJ45 (with Talk Box connector/adaptor) all balanced with + 48V Phantom and GPIO on each Audio I/O Board
Independent ON AIR Lights and Cut Off control when opening Control Room and Studio microphones
PFL button switches to private conversation on Hybrid/Telco/Bluetooth mode
Enable TalkBack feature on any Studio or Control Room microphone
Parametric Compressors/Expander with enhanced features for MICROPHONE and MONO inputs
Save and recall microphone presets including Compressor/Expander settings
Phase inversion on microphone inputs
MONO inputs assignable as EXT source
Ducking/AutoFader assignable to all sources (automatic attenuation of music on speech)

Automix

The Automix feature simplifies mixing activities if many guests are in the studio.
The Automix adds a new source to the existing ones (called “Automix”) and it will be the sum of all the enabled microphones.
The Automix source has all the features of a normal microphone source such as:
Studio/Control Room loudspeakers control
Studio/Control Room light control
Can be used as audio in Private mode for phone calls

Using the Automix source, the user can manage in a very simple way all the microphones of the studio with many benefits:

Managing all the studio’s microphones with one fader only;
A dedicated AGC section for each microphone input automatically adjusts the correct level;
Automatic management of attenuation on microphones not in use, simulating a slight closure of the fader;
Final compressor with automatic leveling of the Automix source;
Possibility to use the microphones individually

Model: OXYGEN-3000-PLUS-12F-1AIO

Axel Oxygen 3000 Plus Digital Broadcast 12 Fader Audio Console

Brands Axel Technology
Product Code:OXYGEN-3000-PLUS-12F-1AIO
Availability:In Stock

$6,259.00

Available Options

Axel Oxygen Options

AoIP Dante interface card to add 16 inputs (+$550.00)

AoIP Dante interface card to add 32 inputs (+$825.00)

Audio I/O Expansion Card Option (+$1,320.00)
