About: Avitech Sequoia 4K60 KVM-Multiviewer

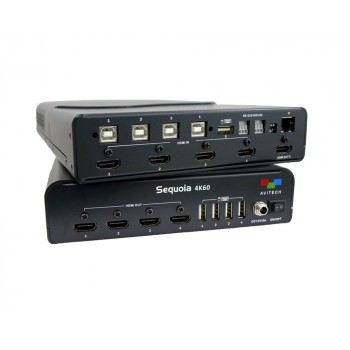

Avitech Sequoia 4K60 is a flexible KVM-Multiviewer for seamless matrix switching, building multi-monitor user workstations and 4K UHD video walls, with 4K UHD multi-touch presentation and operation. Sequoia 4K60 is Avitech’s latest 4K 60Hz UHD KVM-multiview product with unique innovative features. It is a half-width 1RU chassis, with four HDMI 2.0 (4K60) input ports and four USB-B ports. For outputs, there are five HDMI ports for 4K60 UHD output and five USB-A ports.

With built-in mutliviewing capability, any of the outputs can show up to four sources on one screen. The five USB-A ports support KVM matrix switching and touch operation on all the HDMI outputs. Seamless video switching and keyboard mouse switching can be easily controlled by a web based GUI, a connected keyboard/mouse, a touch tablet, a display monitor with touch operation, or any other third party control device via the integrated API and Ethernet/Serial communications.

Features

Plug & Play automatic configuration of multiple user workstations with a mix of multiview and single view KVM.
Freely adjustable quad-multiview windows with PiP, and full screen capability for all sources.
Easy KVM switching between input sources using the Surfer feature, a combination of mouse and keyboard commands, or the touch-capable in-system web based GUI.
On-screen display of source labels, video wall borders, and intuitive graphical user interface (GUI).
Multi-touch operation supported for all five HDMI outputs and USB-A ports.
Support multiple 4K60 UHD projectors with seamless switching of sources.

Specifications:

Input/Output
HDMI Video Inputs: 4 x HDMI 2.0
HDMI Video Outputs: 5 x HDMI 2.0
USB: 5 x USB-A (1.2; HID connection), 4 x USB-B (1.2; PC source connection)
Max. Resolution: 3840 x 2160 (UHD) @ 50/60Hz, 8 bit, 4:4:4
Workstation: Single or multi-user workstation(s) with KVM switching, dual-independent multiview, and fullscreen monitoring
Seamless Switching: Real time multiview preview with touch operation
Presentation: PiP or Full Screen Image with multiview preview
Video Wall: PiP 2x2, 1x2, 1x3, or 1x4 with dual image layer per output
Touch screen support: Multi-touch, concurrent multiple instances
1 × RJ-45 (Ethernet)
2 × 3-pin terminal block (for RS-232/RS-485/RS-422)
System Control: Keyboard/Mouse, HTTP Commands, UDP, Web-browser GUI
Dimension (LxWxH): 11.42 x 6.90 x 1.75 inch (29.00 x 17.40 x 4.45 cm)
Weight: 3.04 lbs (1.39 Kg)
Power Requirements
Power Supply: DC 12V 5A adapter
Power Consumption: Max. 50W
Operating Temperature: 0 ˚C (32 ˚F) to 40 ˚C (104 ˚F)
Storage Temperature: –10 ˚C (14 ˚F) to 50 ˚C (122 ˚F)
Humidity: 0 % to 80 % relative, non-condensing
TAA and NDAA Compliant, FCC Class-B, CE, C-Tick
2 Year Warranty
