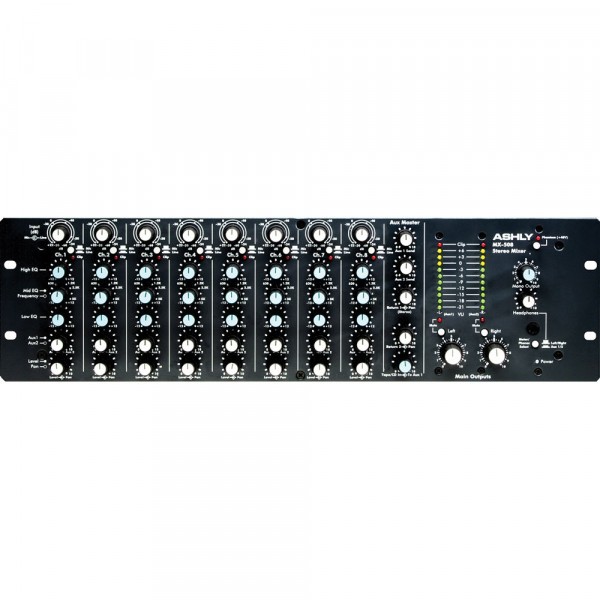

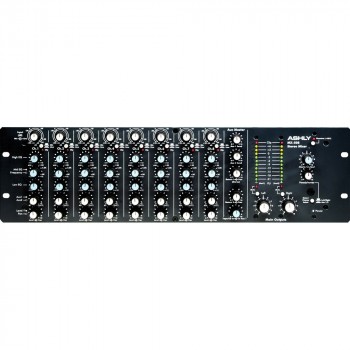

About: Ashly Audio MX508 Stereo Microphone Mixer

Ashly Audio MX508 Stereo Microphone Mixer has features, dependability, and sonic performance only found in larger, more expensive mixing consoles. This third-generation mixer uses a universal switching power supply that runs on 100-240 VAC and adds a 3 5mm stereo line input jack to the front panel; Dual jack insert points, switchable +48V phantom power, and front panel switching on each channel to select between mic or line input are additional features.

MX508 is a True-reciprocal equalization curves are perfectly produced by using three-band equalization with a fixed frequency low and high shelf and a tunable mid-range control. Each input channel is completed by a concentric pair of auxiliary sends and a concentric level and pan control; Ultra low-clamor adding speakers join the channel signals for the fundamental and send yields. The main or aux outputs are monitored by two 10-segment LED arrays. Standard equipment includes transformer-isolated 600 ohm outputs on XLR connectors, stereo pre-fader line outputs on RCA connectors, and standard line level outputs on 1/4" connectors. For increased precision and durability, Ashly continues to use 16mm metal shaft potentiometers of a professional quality on all controls.

Features

8 Stereo Channels
Rack Mountable
8 XLR & TRS Inputs
8 Send/Return Insets
Sweepable EQ Section
Balanced XLR Output
1/4" Mono Output
Sub Input/Output
+48V Phantom Power
