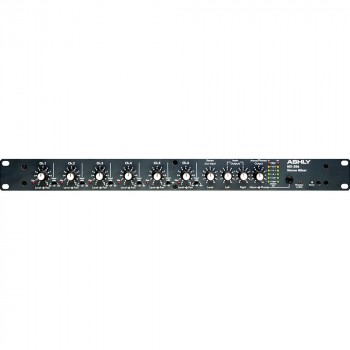

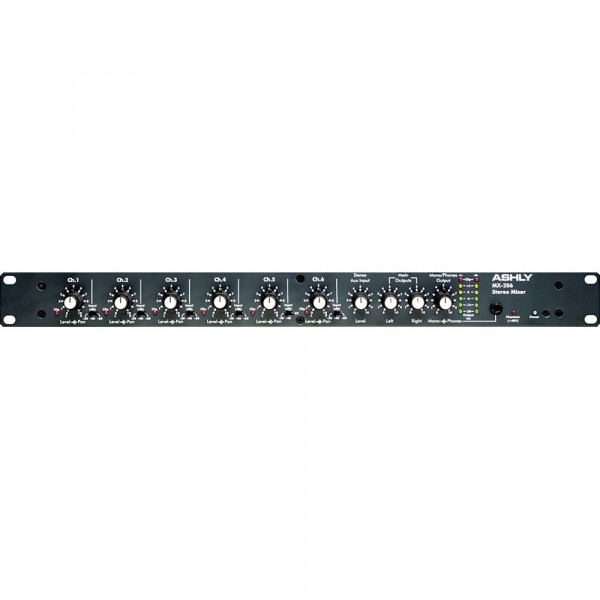

About: Ashly Audio MX-206 Single-Space Rack-Mount Mixer

Ashly Audio MX-206 Single-Space Rack-Mount Mixer combines the features, reliability, and sonic performance you have come to expect from Ashly. This third generation mixer adds a universal 100-240VAC 50/60Hz power supply and a 3.5mm front panel stereo line input jack; Other features include stereo, mono, and head- phone outputs, a 20dB input pad on each channel, switch- able +48V phantom power, up to 60dB of mic preamp gain (84 dB total), and concentric level and pan controls on each input channel; Ultra low-noise summing amplifiers combine the channel signals for the main outputs. Two 5-segment LED arrays monitor stereo outputs. Stereo line level outputs on 1/4" connectors, a transformer isolated 600 ohm mono output on an XLR connector, and tape/CD inputs and outputs on RCA connectors come as standard equipment. Ashly still uses professional quality 16mm metal shaft potentiometers on all controls for greater accuracy and long life.

Features

6 Channel
Rack Mountable
Pad Switches Each Channel
6 Mic Inputs
Stereo/Mono Output
Stereo AUX (RCA) Input
-20, -40, & -60dB Gain Switches
Pan Control for Each Channel
+48V Phantom Power
