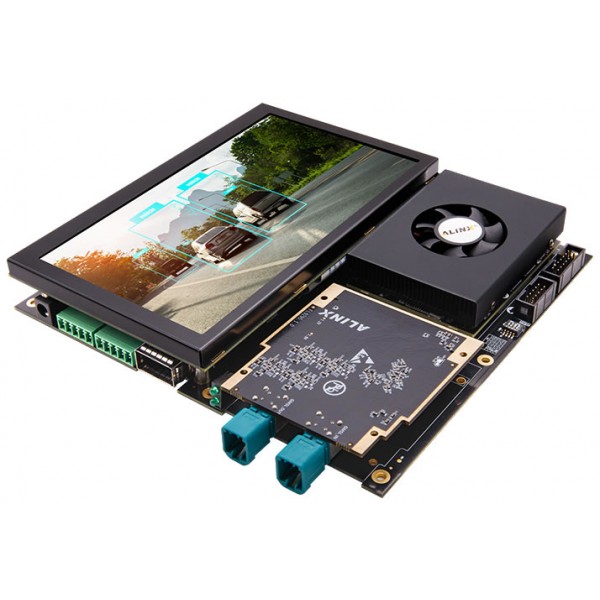

• Alinx Z7-A Development Board Kit with Zynq UltraScale

About: Alinx Z7-A Development Board Kit with Zynq UltraScale

Alinx Z7-A development board Kit equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, In response to the development needs of the autonomous driving industry, verification of functions such as electronic rearview mirror CMS, multi-channel video capture, multi-channel video injection, and multi-channel video streaming can be achieved.

4-channel GMSL video input/output, 1-channel 1000M Base-T1 interface, 2-channel CAN, can achieve gPTP timestamp synchronization function, ensuring the synchronization of multi-channel data.

Features:

1 x FMC HPC Connectors (FMC1 has 55 pairs lvds io and 8 pairs GTH)
1 x M.2 Interface
1 x DP Interface on PS
1 x USB3.0 on PS
1 x Gigabit Ethernet (1 x PS)
1 x UART on PS (USB to UART)
1 x QSFP+fiber optic
2 x CANFD
1x 14-pin Expansion Port(14 pin 2.54mm spacing, Used to connect various modules of black gold or external circuits designed by users themselves.)
1x 40-pin FPC(Connected to the black gold 7-inch screen AN7000.)
1 x JTAG
1 x Micro SD
EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
8 x LED (1 x PWR + 1 x DONE + 1 x PS + 1 x PL+ 4 x User indicator light)
KEY (1 x RESET + 2 x User buttons)
12V single supply
Dimensions: 183.41 x 171.18 mm form factor

Model: Z7-A

Write a review

Note: HTML is not translated!
   Bad           Good
Captcha

Alinx Z7-A Development Board Kit with Zynq UltraScale

  • Brands Alinx
  • Product Code:Z7-A
  • Availability:In Stock
  • $5,483.00
