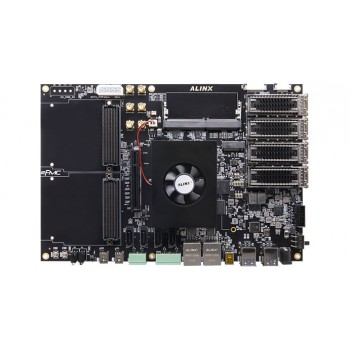

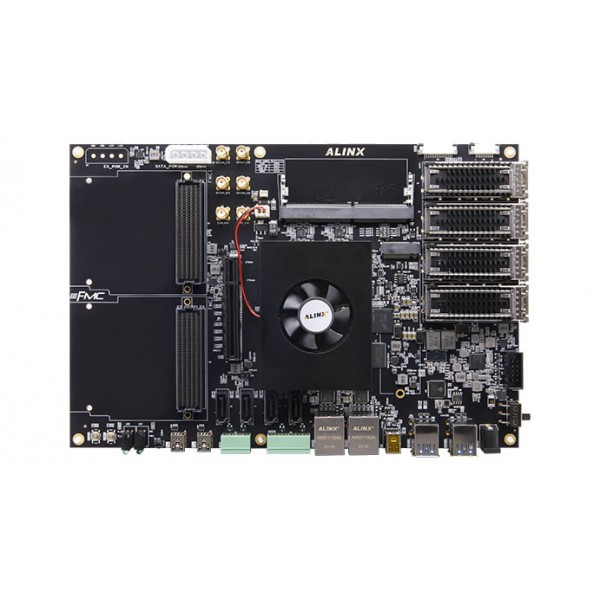

About: Alinx Z19 Single Board Computer Kit
Alinx Z19 Single Board Computer Kit offers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, PCIe, FMC HPC, QSFP28+, DP, M.2, CAN/RS485.Applications:
Artificial Intelligence, Automotive, AV Broadcasting, Deep learning, Digital Signal Processing, 5G Wireless and Wire Communication, Data Centers, Drive / Motion Control, Industrial Internet of Thing, Cloud Computing Security, Machine Vision, Medical Endoscop, Video and Image Processing
Features:
1 x 2 lane MIPI on PL
1 x PCIe Gen 3 x 8 slot
2 x CAN Interfaces on PS
2 x RS485 Interfaces on PL
2 x USB3.0 on PS + 2 x USB2.0 on PS
3 x UART (2 x USB to USRT + FPC UART)
1 x JTAG
1 x Micro SD
EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor(LM75)
4 x SATA Interface
4 x SMA
1 x RTC(Real-time clock)
4 x LED (1 x PWR + 1 x DONE + 1 x PS + 1 x PL), 3 x KEY (1 x RST + 1 x PS + 1 x PL)
12V single supply
Dimensions: 250 x 170 mm form factor
Model: Z19
