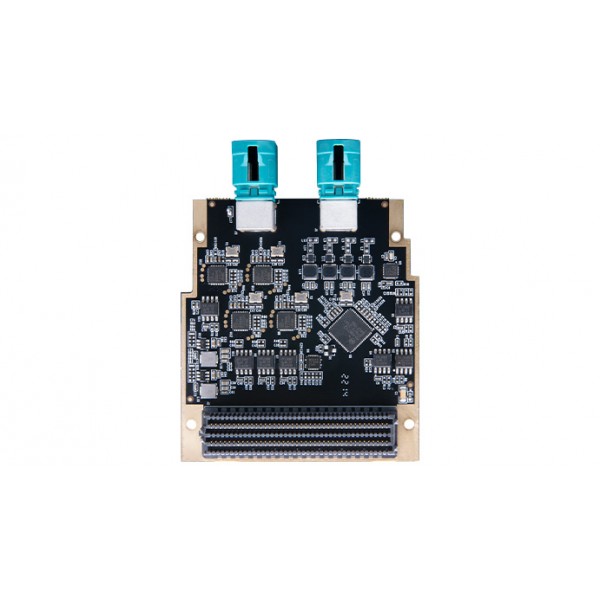

• Alinx FL9295 4-channel Vehicle Video Acquisition Injection GMSL HPC FMC Card

About: Alinx FL9295 4-channel Vehicle Video Acquisition Injection GMSL HPC FMC Card

Alinx FL9295 4-channel Vehicle Video Acquisition Injection GMSL HPC FMC Card offering four in one FAKRA vehicle standard coaxial connector. FL9295 is a 4-channel GMSL2 camera acquisition and video simulation injection module. Module adopts 1 piece MAX96712 deserializer and 4 MAX9295A serializers achieve 4 video decoding input and output channels

Features:

Supports 4-channel GMSL1/2 camera input and output
Input: Supports 4-channel cameras, up to 8MP 30 frame resolution cameras
Output: Supports 4-channel video output, supports 2MP/4MP 60 frames, or 8MP 30 frames
Cable length support Up to 40 meters (3Gbps) in GMSL1 mode
Up to 20 meters (6Gbps) in GMSL2 mode
Vehicle standard connector
Using Anfeno Z Code FAKRA vehicle standard coaxial connectors
Input image format Supports RAW8/10/12/14/16/20, RGB565/666/888, YUV422 8/10bit video image formats. It can be matched through I2C Install a remote camera FMC LPC connector
Dimensions: 76.5 x 69 mm form factor

Model: FL9295

Write a review

Note: HTML is not translated!
   Bad           Good

Alinx FL9295 4-channel Vehicle Video Acquisition Injection GMSL HPC FMC Card

  • Brands Alinx
  • Product Code:FL9295
  • Availability:In Stock
  • $2,577.00
